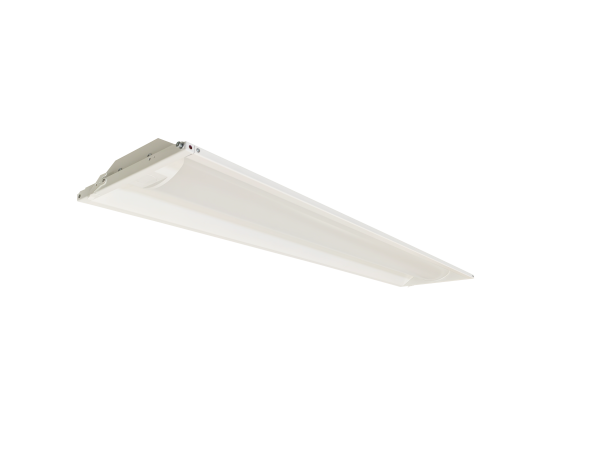

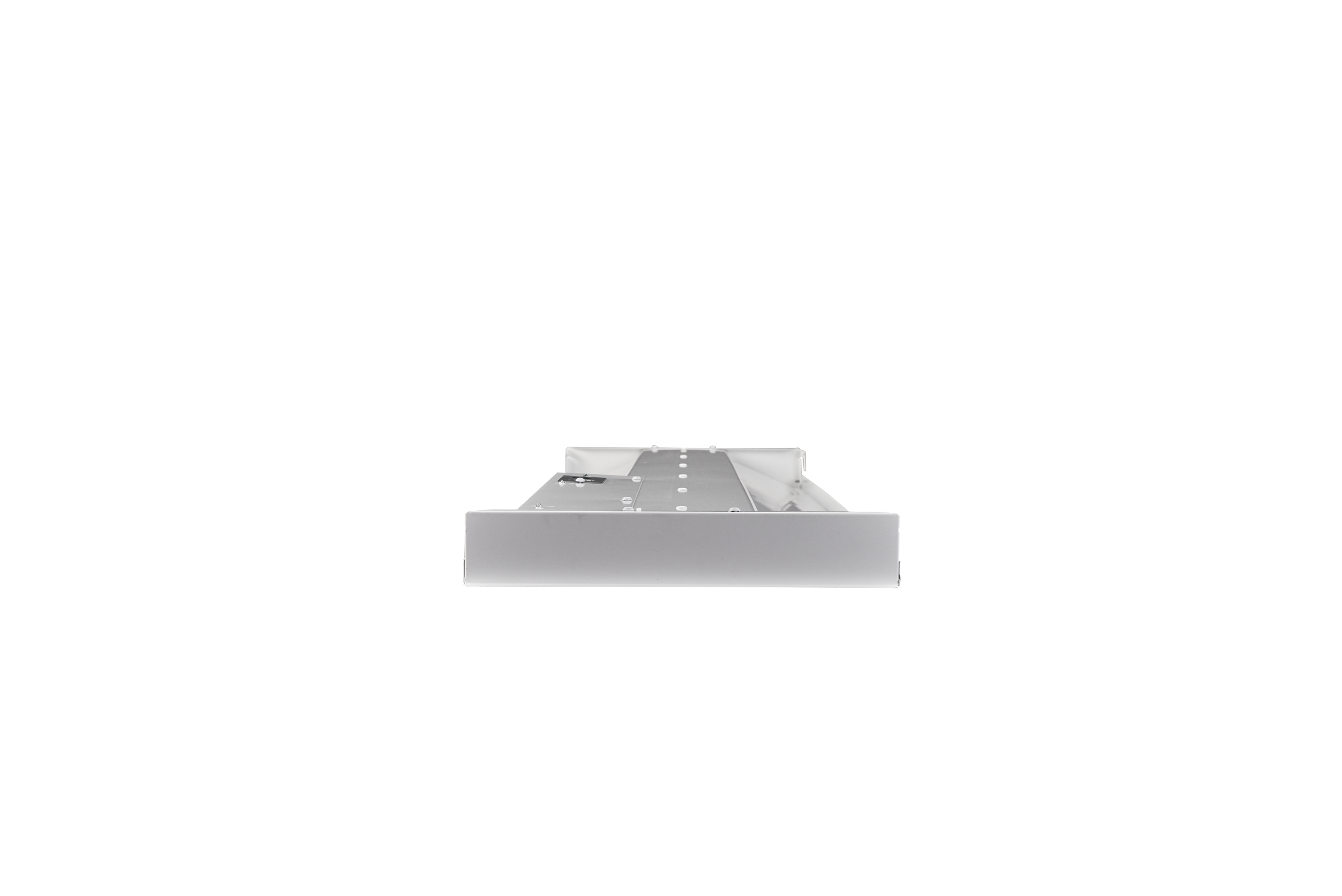

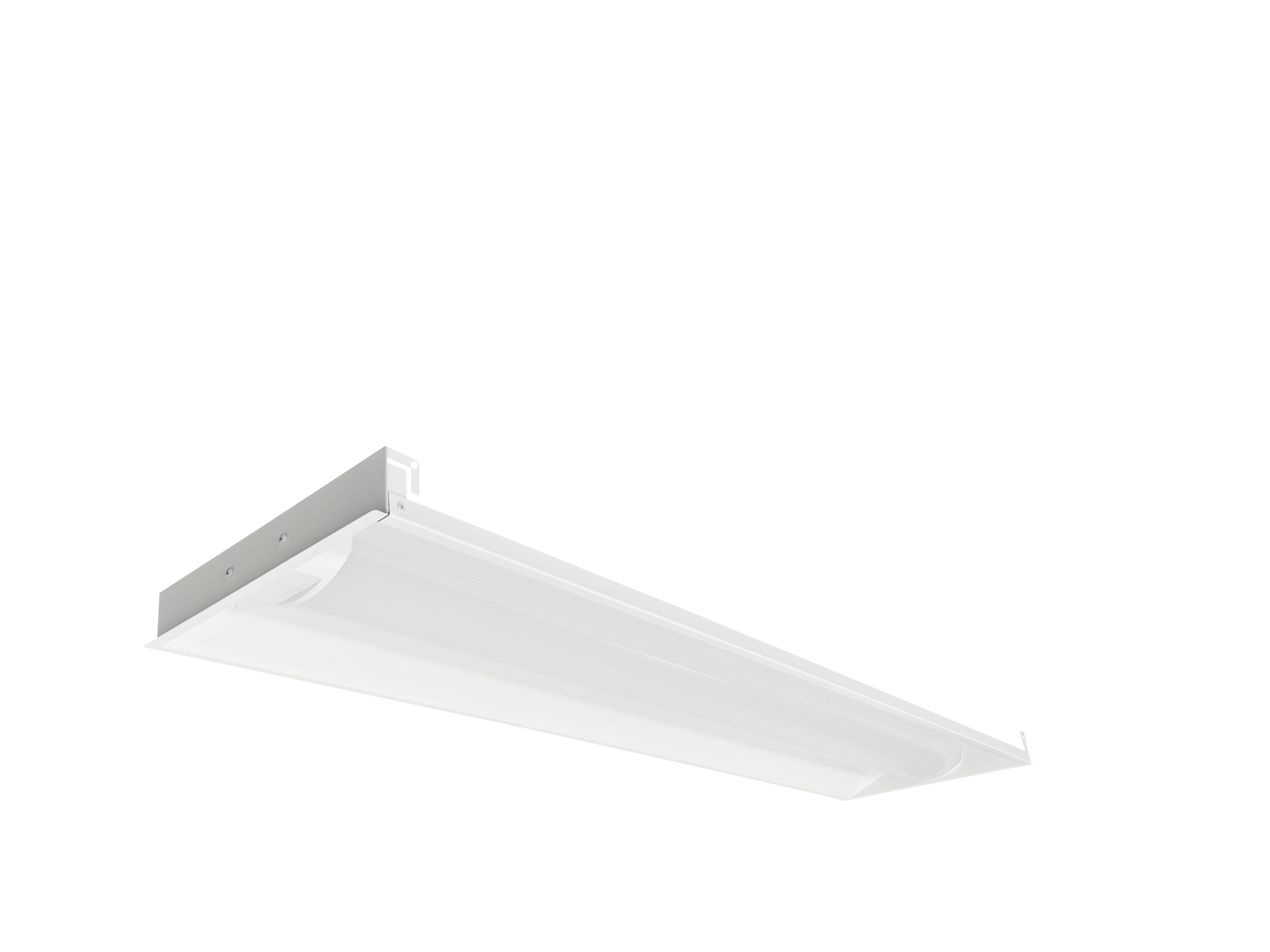

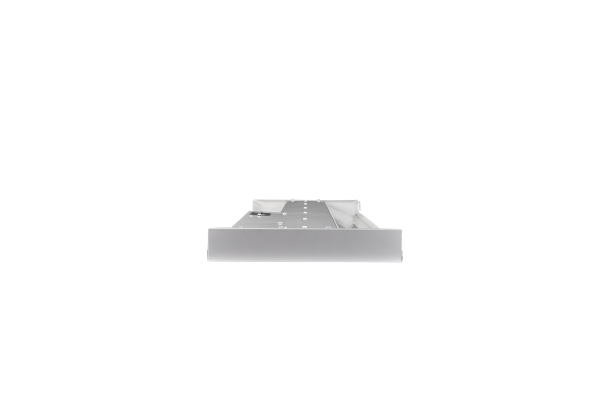

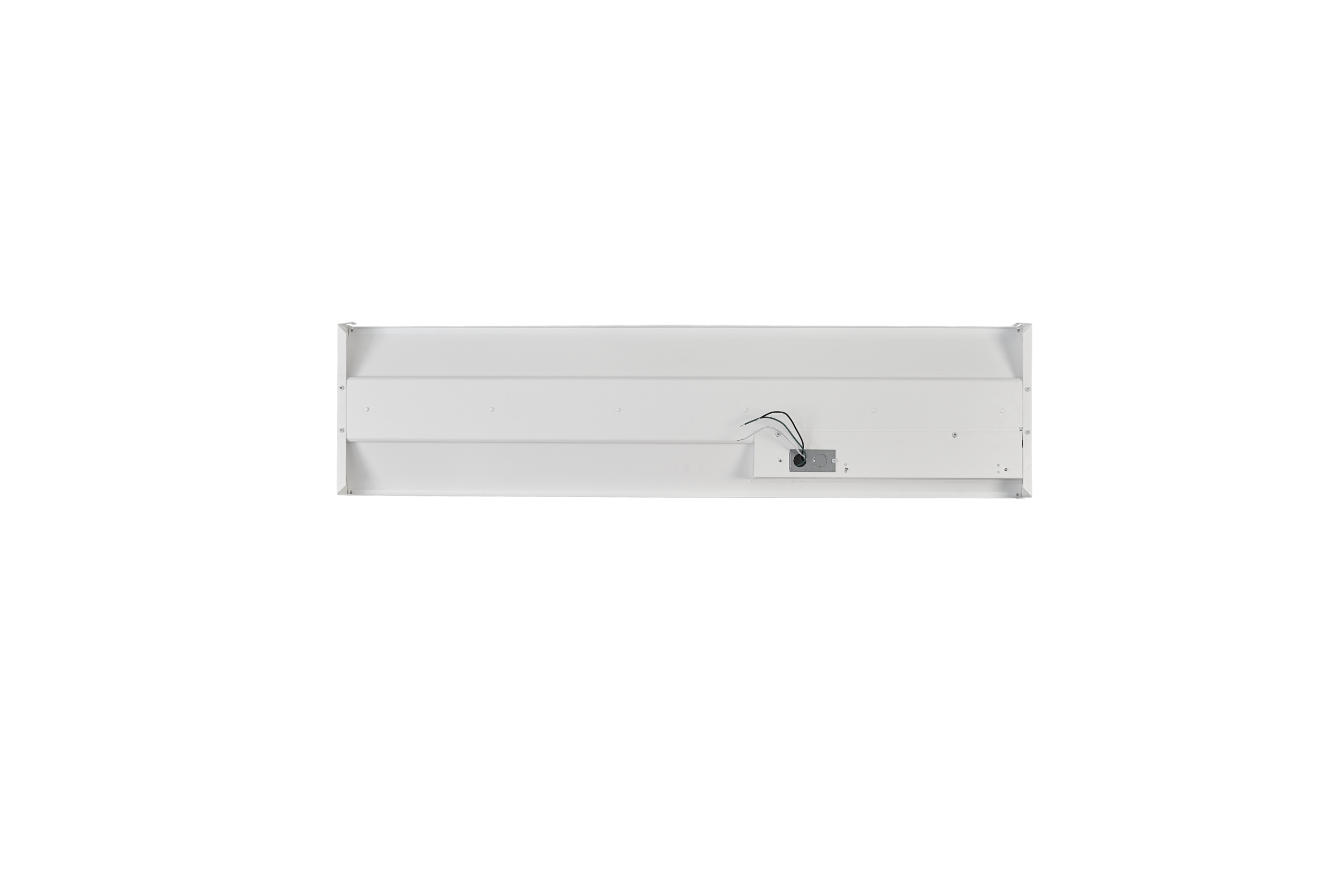

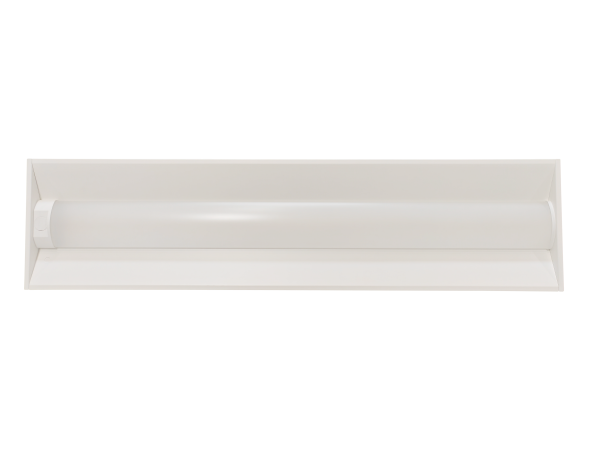

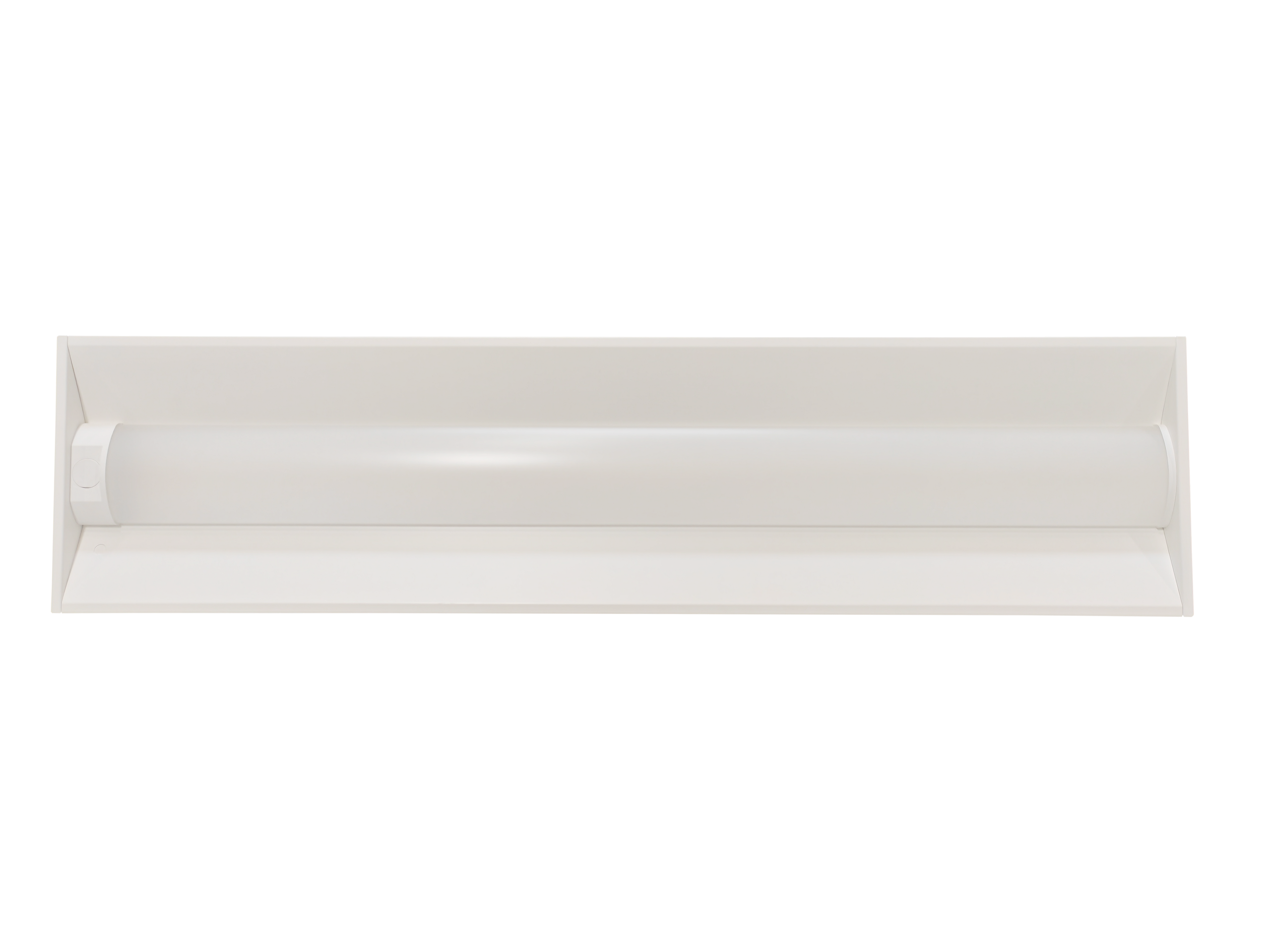

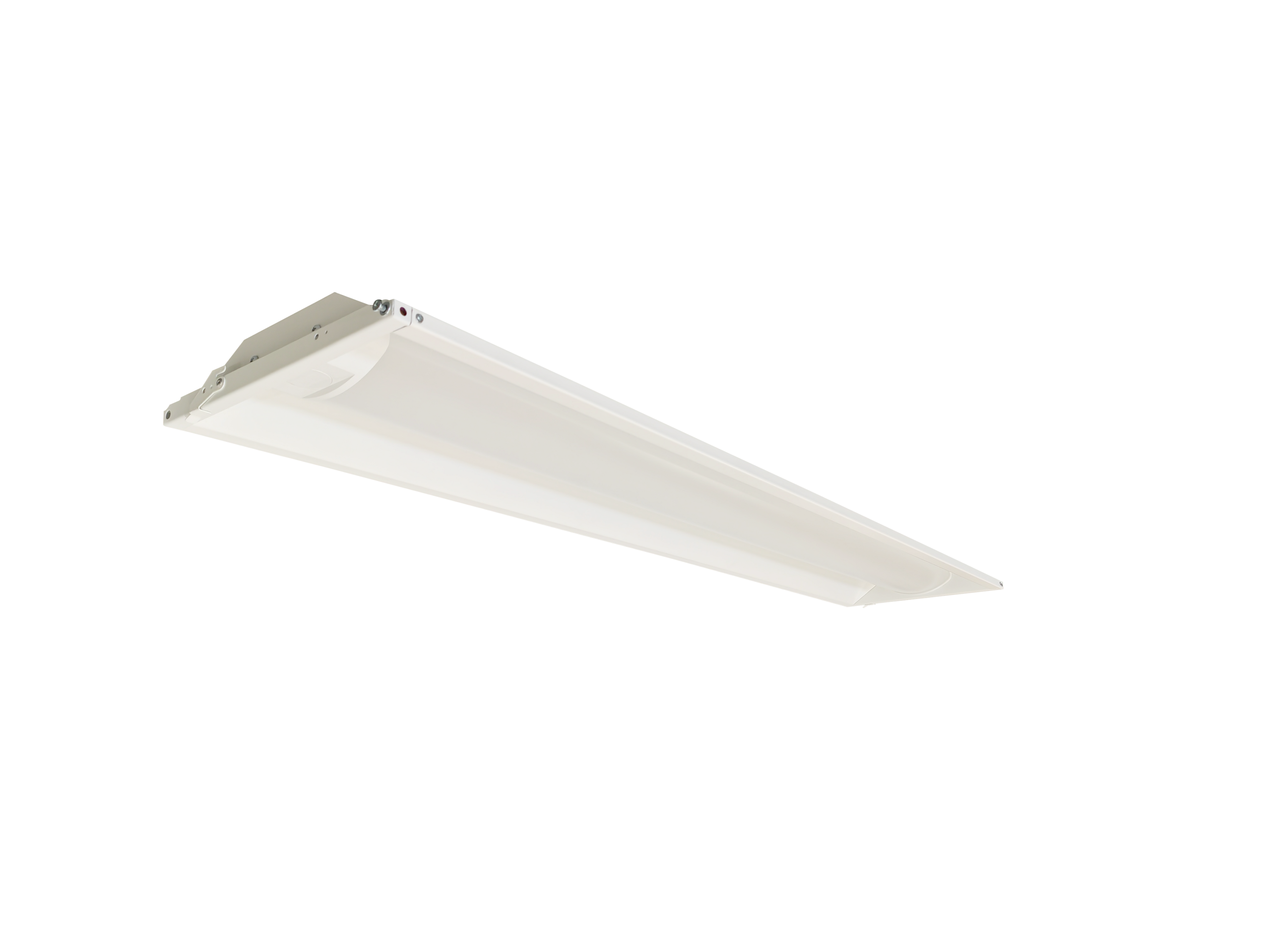

Volumetric Fixture 1X4 LED SCCT 120-347V SWATT
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347VAC |
| Watts | Selectable 22, 30, or 35W |
| Lumens | Selectable 4900, 4200, or 3080 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -40 to 50C (-40 to 122F) |
| Manufacturer Description | VL1 Volumetric Troffer, 1×4, PowerSet 35/30/22W, FieldCCeT 3500/4000/5000K, 120-347V, 0-10V Dimming |
| Manufacturer Name | EIKO |
| Manufacturer Code | 13792 |
| Dimmable | 0-10V |
| Certification Energy Star | No |
| IP Rating | IP20 |
| Cct | 3500/4000/5000 |
|---|---|
| Cri | 80+ |
| Dimming | 0-10 |
| Dlc version | Dlc standard |
| Efficacy (lm/w) | 140 lm/w |
| Energy star | No |
| Description | Vl1 volumetric troffer, 1x4, powerset 35/30/22w, fieldccet 3500/4000/5000k, 120-347v, 0-10v dimming |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 4900/4200/3080 lm |
| Operating temp range (°f/°c) | -40f to 122f (-40c to 50c) |
| Rated life | 50,000 |
| Voltage | 120-347vac |
| Wattage | 35/30/22w |
| Item id | Vl1-14ps35-fcct-h |
| Item type | Fixtures |
| Order code | 13792 |
