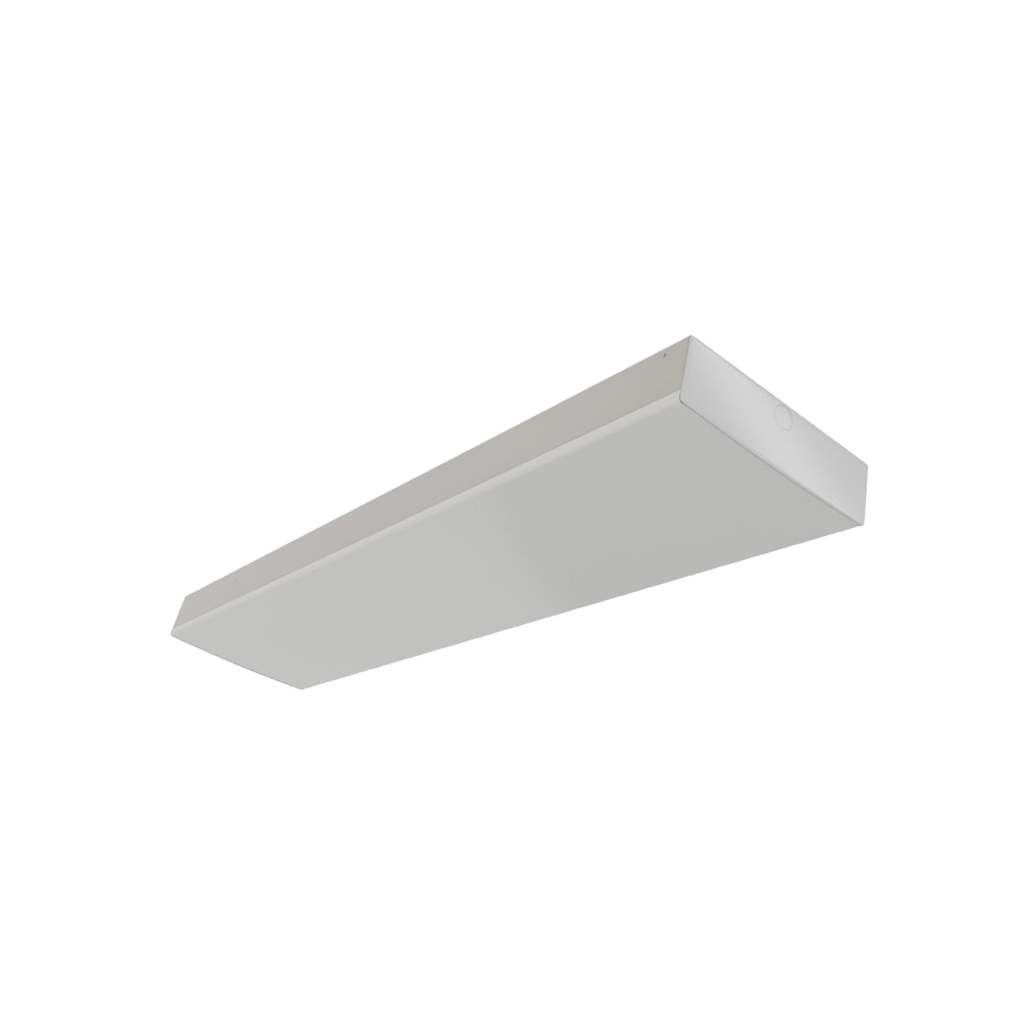

RENO R38001 - RENO-HWR2-MW-DV-MCCT

Manufacturer Code: R38001

View Product Attributes
Kelvin

Selectable 3500/4000/5000

Volts

120-347

Watts

Selectable 12, 15, 18 or 22W

Length Inches (mm)

24 (609.6)

Beam Spread in Degrees

120

Lumens

Selectable 1560, 1950, 2340 or 2860 lumens

Colour Rendering Index (CRI)

80+

Average Life in Hours

50,000 +

Temperature Range

-30 to 50C (-22 to 122F)

Manufacturer Description

-10, -347, 0, 12, 120, 15, 18, 2, 22, 3500, 4000, 5000, WRAP AROUND FIXTURE | 2FT | 3500/4000/5000K Selectable CCT | 12/15/18/22W Selectable Wattage | 120-347V | 0-10V Dimming |

Body Colour

White

Manufacturer Code

R38001

Dimmable

Yes

Case Dimensions Inches

Master Case: 25"x15.5"x7" – 15lbs Single Box: 24.5"x7.5"x3" – 2lbs

Case Quantity

6

Products

Traditional wraparounds

Color temperature (k)

3500/4000/5000k(multi cct)

Cri

>80

Description

Wrap around fixture | 2ft | 3500/4000/5000k selectable cct | 12/15/18/22w selectable wattage | 120-347v | 0-10v dimming |

Dimmable

0-10v

Efficacy

Up to 135lm/w

Finish

White

Lumens

1560/1950/2340/2860

Operating temperature

-22f to +122f (-30c to +50c)

Power (w)

12/15/18/22w

Voltage (v)

120-347v

Mol

2ft

Box qty

6

Shipping dimensions

master case: 25"x15.5"x7" - 15lbs single box: 24.5"x7.5"x3" - 2lbs

Order no #

R38001

Beam angle (degree)

120

Dlc premium: stairwell and passageway

S-svfdx3

Dlc standard: direct linear ambient luminaires

S-onsg41

Lifespan (hours)

70,000hrs

Stock Availability

Canada Wide Stock: 493

For larger orders, 493 item(s) available with a 1-2 week lead time.

  • $65.25 (per pack of 1)

  • $121.80 (per pack of 2)$60.90 each item

Description

Wrap Fixture 2 Foot LED SCCT SWATT Check Specs
