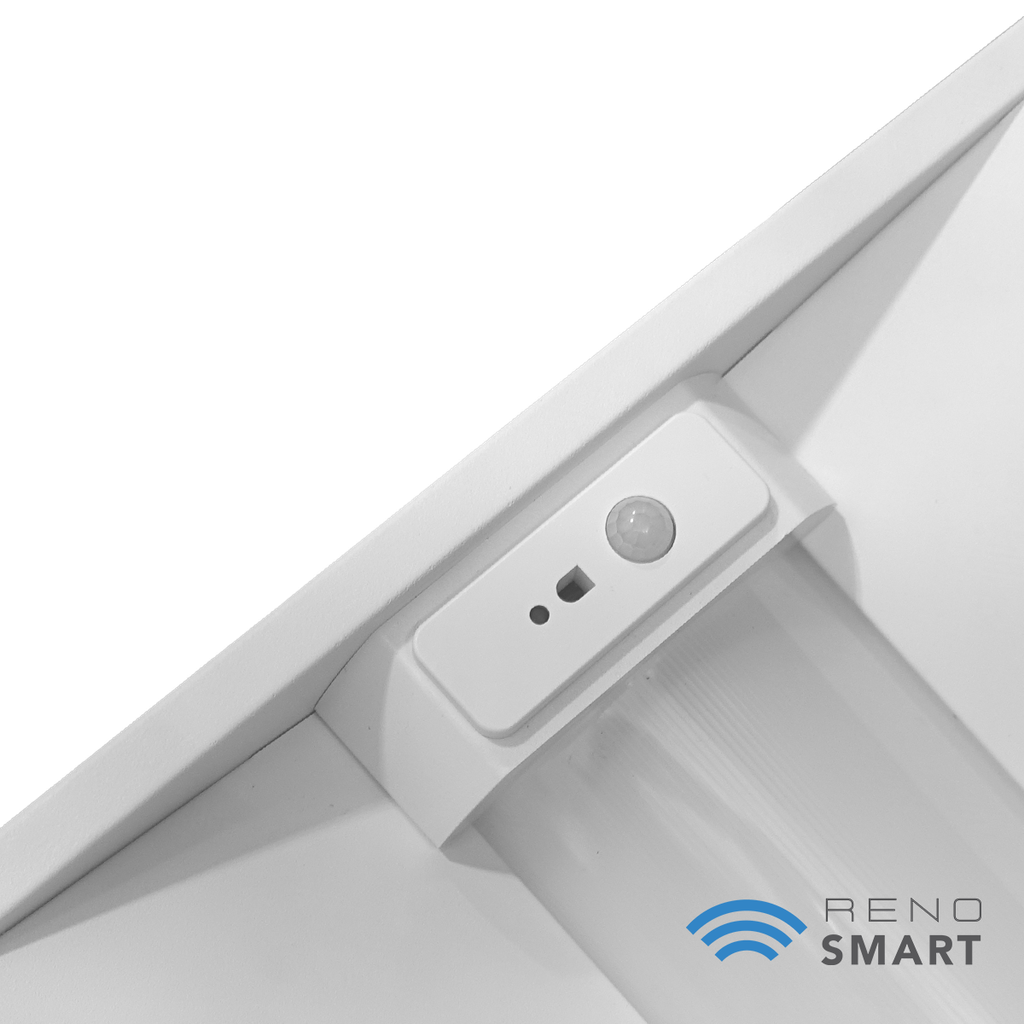

RENO R37015 - RENO-22CTF-UNV/347-MWMCCT-HL (New Version)
Manufacturer Code: R37015
Manufacturer Code: R37015
For larger orders, 972 item(s) available with a 1-2 week(s) lead time.

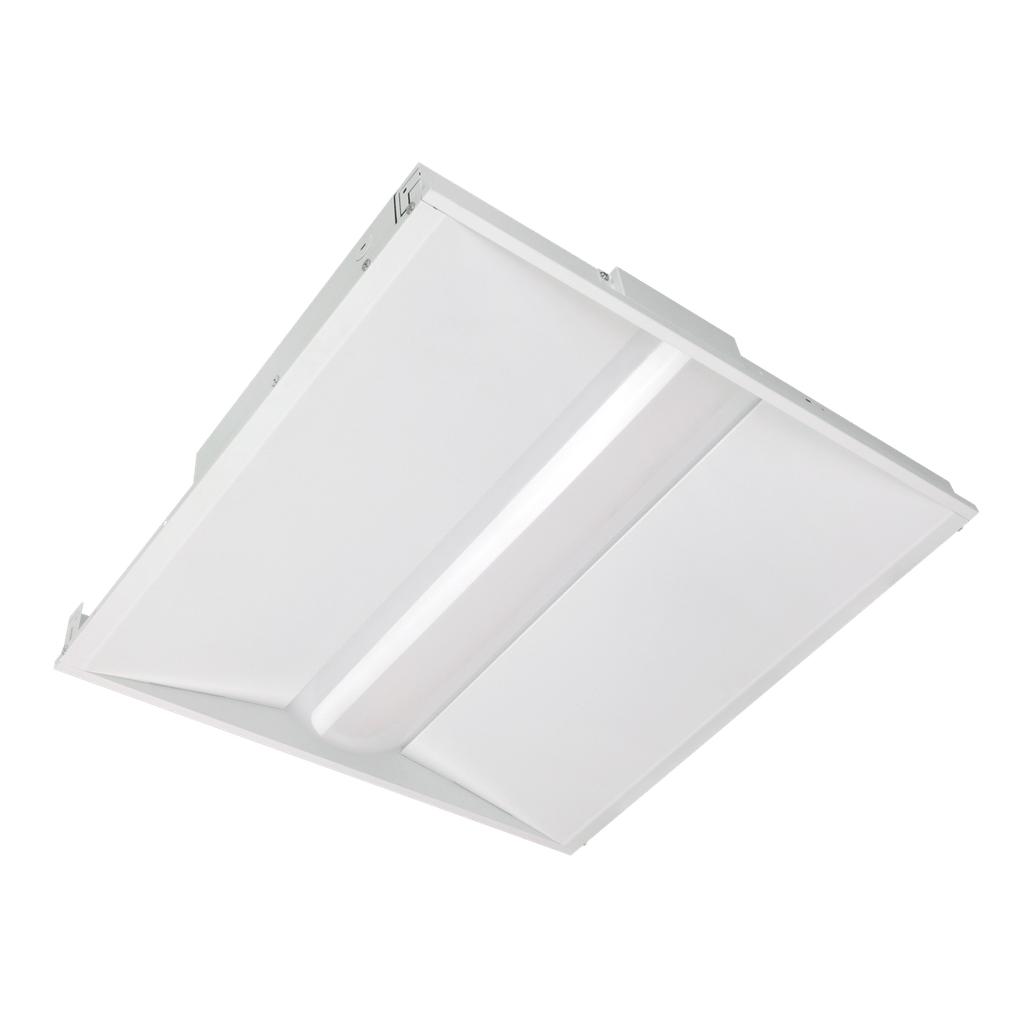

This 2x2 LED center basket troffer (Selectable Wattage & CCT, 120–347V) is no longer available.
You can still purchase the updated version from us—it retains the same 2x2 size, broad voltage range (120–347V), and flexibility with wattage selection (25W, 30W, or 35W) and colour temperature options (3500K, 4000K, or 5000K).

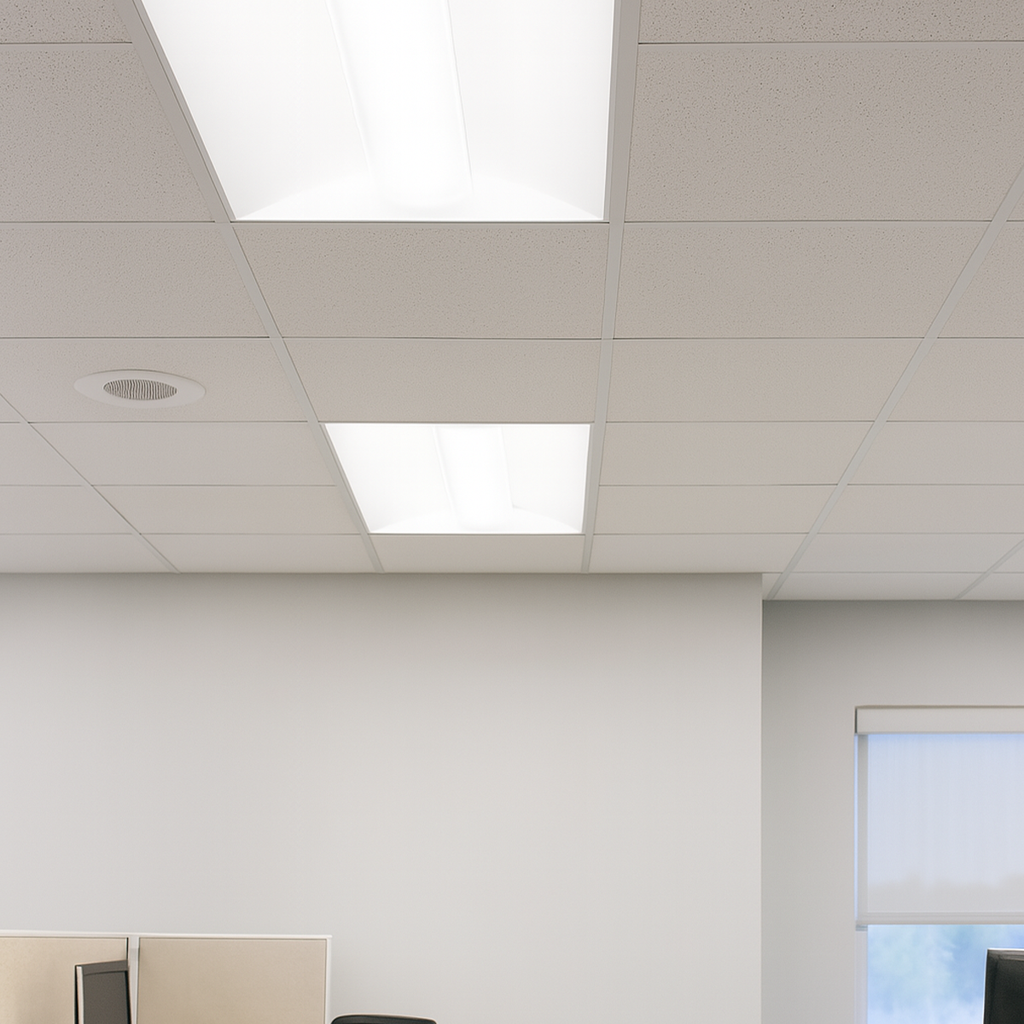

The new model is designed for easy installation in standard grid ceilings and offers the same high-performance, customizable lighting for offices, schools, and commercial spaces.
Note: All LED fixtures can shift slightly in brightness and colour as they age. If the new unit is installed next to older ones—even if they were once identical—you may notice minor differences in tone or output. This is normal LED behaviour.
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | Selectable 20, 25, 30 or 40W |
| Beam Spread in Degrees | 110 |
| Lumens | Selectable 2470, 3120, 4160 or 5070 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -20 to 50C (-4 to 122F) |
| Manufacturer Description | CENTER BASKET LED TROFFER HIGH LUMEN 22 | 19/24/32/39W Selectable Wattage | 130lm/W | 3500/4000/5000K Selectable CCT | 120-347v | |
| Body Colour | White |
| Manufacturer Code | R37015 |
| Dimmable | Yes |
| Case Dimensions Inches | 24.5" x 25.5" x 2.5" – 5lbs |
| Case Quantity | 1 |
| Manufacturer Name | RENO |
| Beam angle (degree) | 110 |
|---|---|
| Products | Center basket troffers |
| Color temperature (k) | 3500/4000/5000k(multi cct) |
| Cri | >80 |
| Description | 2x2 center basket troffer | selectable wattage 20/25/30/40w | up to 181 lm/w | selectable cct 3500/4000/5000k | 120-347v | white finish | |
| Dimmable | 0-10v |
| Dlc type | Dlc premium, dlc standard |
| Efficacy | Up to 137 lm/w |
| Finish | White |
| Lifespan (hours) | 50000 hrs |
| Lumens | 2,656/3,427/3,935/5,264 lm |
| Operating temperature | -4f to +122f (-20c to +50c) |
| Power (w) | 20/25/30/40w |
| Voltage (v) | 120-347v |
| Mol | 2x2 |
| Box qty | 1 |
| Shipping dimensions | 24.5" x 25.5" x 2.5" - 5lbs |
| Order no # | R37015 |
| Dlc premium: low-bay luminaires | S-s0qfw9 |
| Dlc standard: luminaires for ambient lighting | S-91n32v |
