RENO R35322 - RENO-22BLPL-DV-MW-MCCT-MS
Manufacturer Code: R35322
Not the right item? 💡 Contact Us
Stock Availability
Canada Wide Stock: 1199
For larger orders, 1199 item(s) available with a 1-2 week(s) lead time.

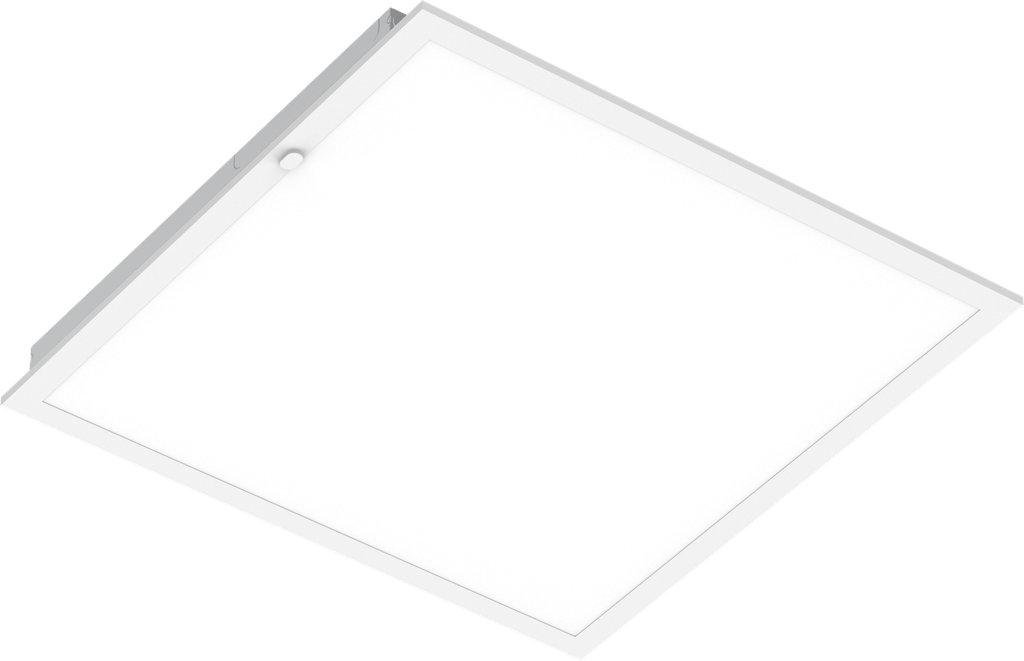

Flat Panel 2X2 LED SCCT Back Lit 120-347V
Product Accessories
RENO R39202
RENO-SMK22
LED PANEL TRIM KIT - surface mounted kits for 2X2 Panel installation use
$19.38
RENO R39212
RENO-RFK22
RECESSED PANEL TRIM KIT -Recessed Trim Kit for 2 x 2 Flat Panel/ Center Basket Troffer/ Architectural Troffer Fixture installation use
$45.00
RENO R74006
RENO-SENSOR-PIR-2.5MM-H
PIR Sensor for the Sensor-Ready Flat Panels (R35321/R35322/R35323) | 2.5MM Jack| 12VDC | Mounting Height 13ft | 20ft Detection Radius | Bi-level Dimmable, ON/OFF | Default Setting: Dim to 30% after 15 Mins |
$15.86 - $16.63
RENO R83001
RENO-EM-H15
EMERGENCY LED DRIVER - 15W ,100-347Vac, 50/60Hz ,0.1A max ,12W max 170V DC , 5c ~50c
$304.30 - $328.47
Attributes
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | Selectable 20, 30 or 40W |
| Beam Spread in Degrees | 110 |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 + |
| Temperature Range | -20 to 50C (-4 to 122F) |
| Body Colour | White |
| Manufacturer Name | RENO |
| Manufacturer Code | R35322 |
| Dimmable | Yes |
| Case Dimensions Inches | 24.5" x 25.5" x 3" – 8lbs |
| Case Quantity | 2 |
Manufacturer Attributes
| Products | Premium sensor-ready flat panels |
|---|---|
| Cri | >80 |
| Description | 2x2 back-lit panel with sensor compatibility | **does not include sensor** selectable wattage 20/30/40w | selectable cct 3500/4000/5000k | up to 133 lm/w | 120-347v |
| Dimmable | 0-10v |
| Efficacy | Up to 133lm/w |
| Finish | White |
| Operating temperature | -4f to +122f (-20c to +50c) |
| Power (w) | 20/30/40w |
| Voltage (v) | 120-347v |
| Mol | 2x2 |
| Box qty | 2 |
| Shipping dimensions | 24.5" x 25.5" x 3" - 8lbs |
| Order no # | R35322 |
| Beam angle (degree) | 110 |
| Color temperature (k) | 35/40/5000k |
| Dlc premium: low-bay luminaires | S-zt3xbm |
| Dlc premium: luminaires for ambient lighting | S-lsczw2 |
| Lifespan (hours) | 100,000hrs |
