CSC - PLS22-40W-3P-3CCT-UD
Manufacturer Code: PLS22-40W-3P-3CCT-UD
Not the right item? 💡 Contact Us
Stock Availability
Canada Wide Stock: 608
For larger orders, 608 item(s) available with a 1-2 week(s) lead time.

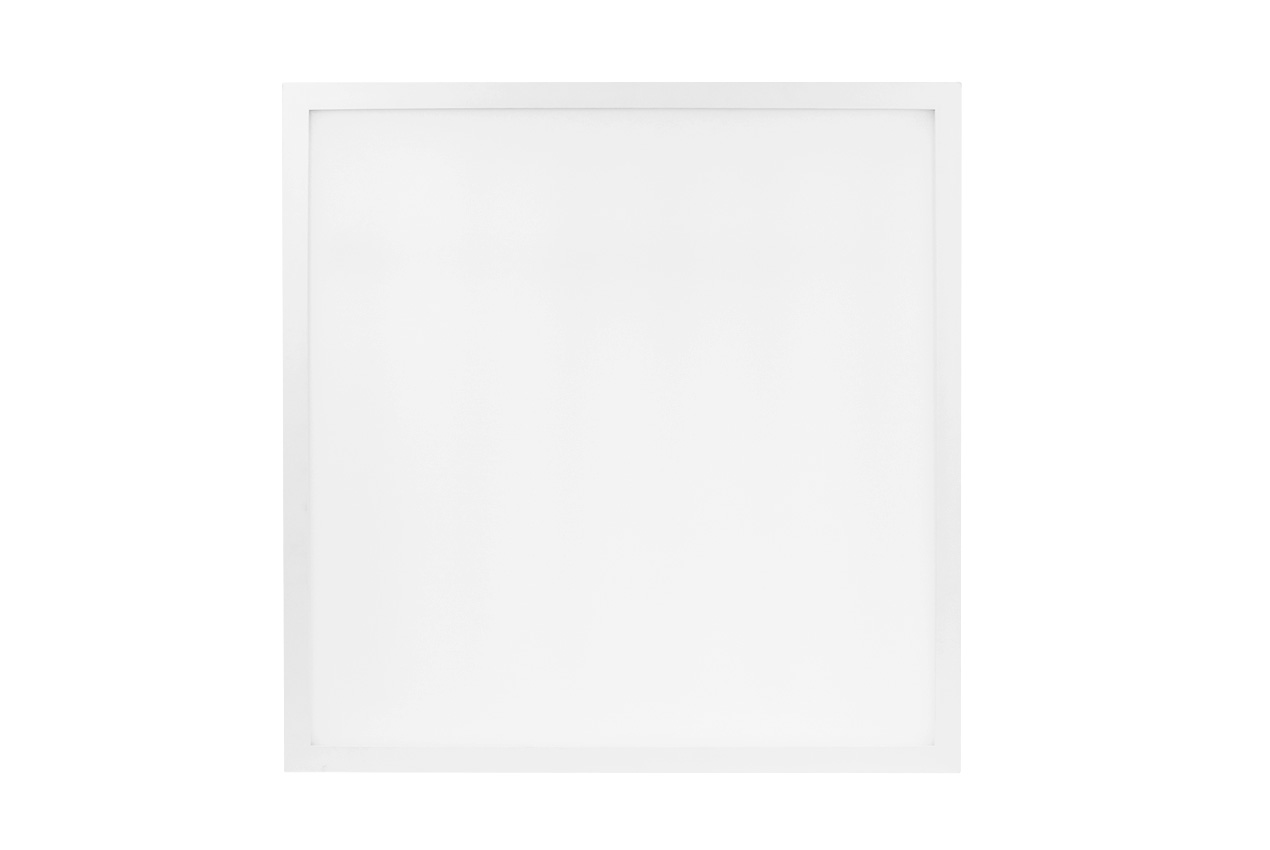

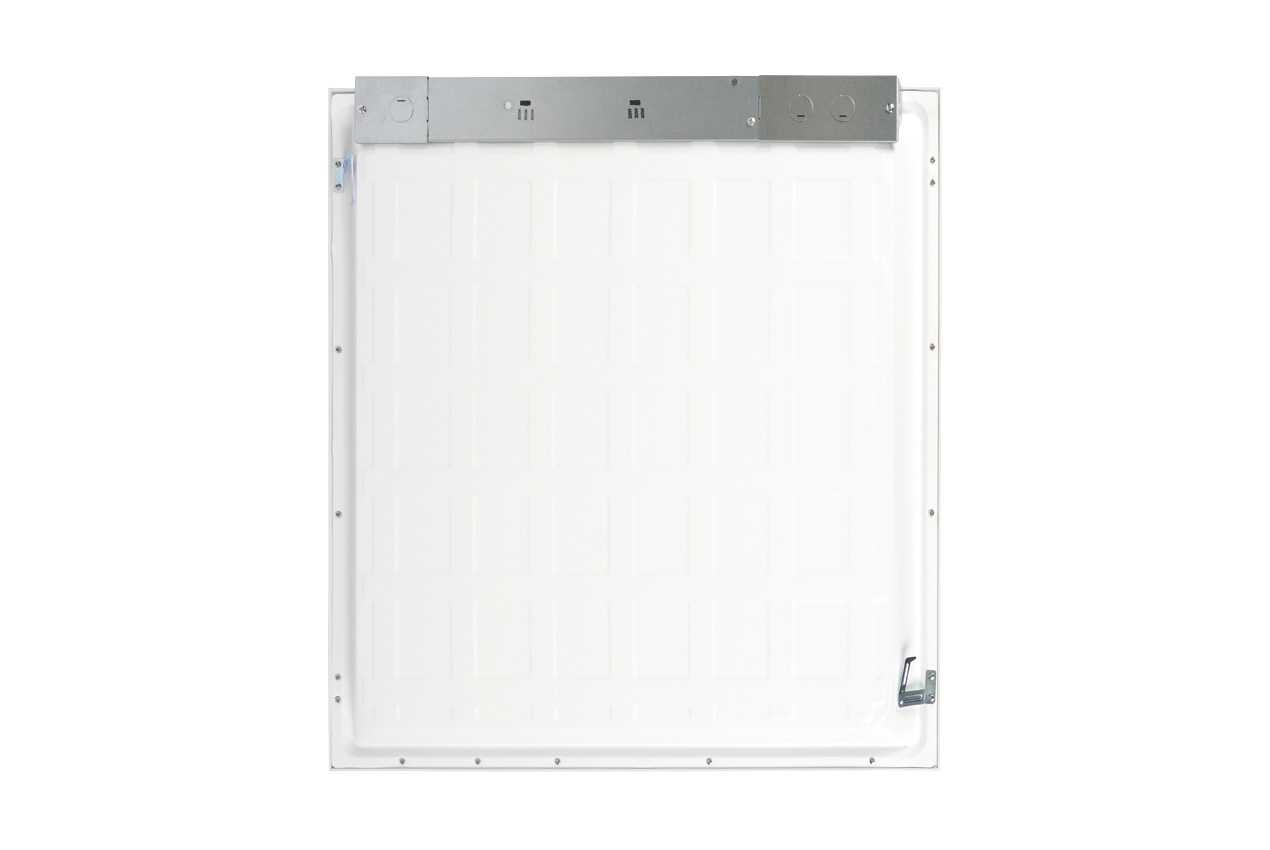

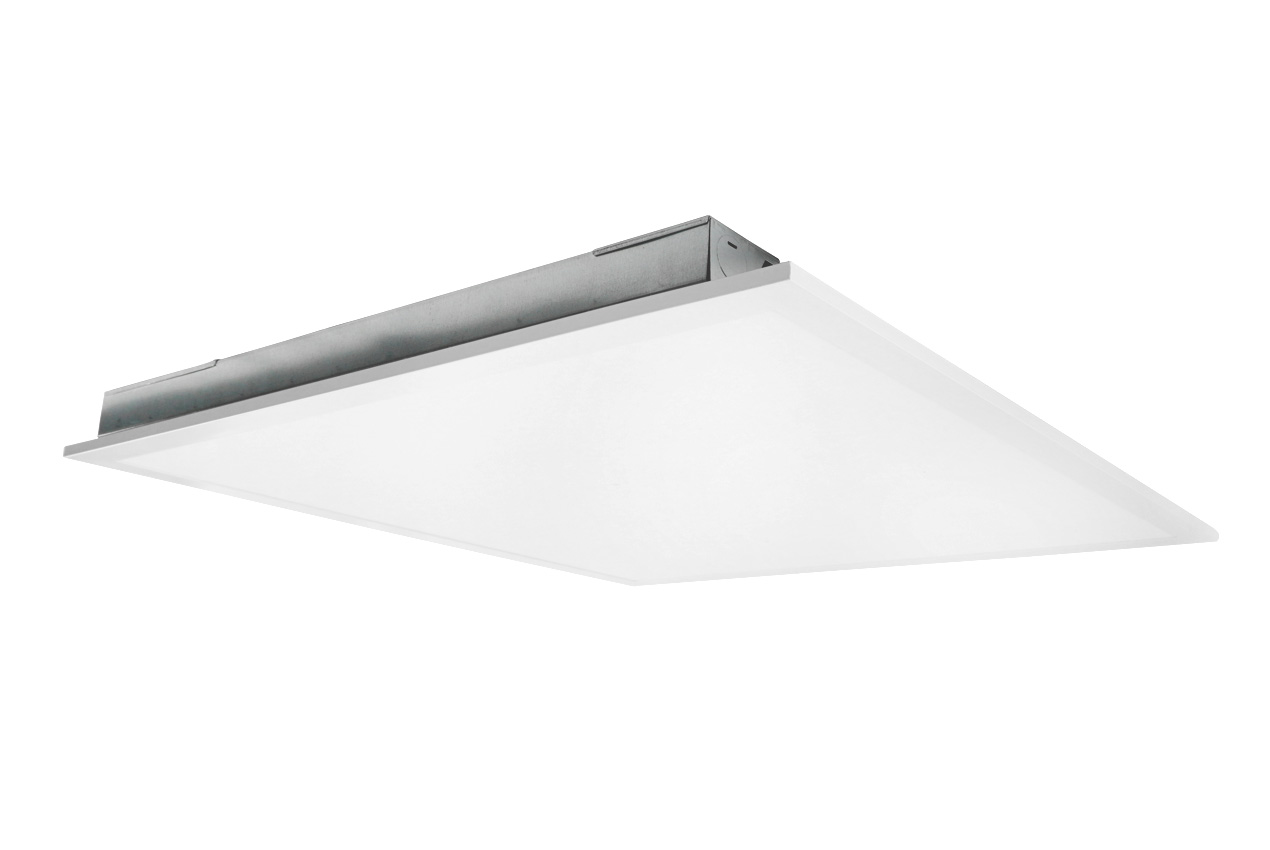

Flat Panel 2X2 LED SCCT Back Lit 120-347V
Attributes
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | Selectable 20, 30 or 40W |
| UPC | 845599040866 |
| Lumens | 4292 |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 54000 |
| Temperature Range | -20 to 40C (-4 to 104F) |
| Manufacturer Description | PLS Standard Panel Light, Panels/Troffers, 20W/30W/40W, 3500K/4000K/5000K, White, 7 Year Warranty |
| Body Colour | White |
| Manufacturer Name | CSC |
| Manufacturer Code | PLS22-40W-3P-3CCT-UD |
| Dimmable | 0-10V |
| Power Factor | >90 |
| Beam Spread | 120 |
| IP Rating | IP20 |
| Item Weight (lbs) | 4.2 (1.91) |
| Body Construction | Aluminum |
Manufacturer Attributes
| Amperage | 0.4 a |
|---|---|
| Beam spread | 120 |
| Colour temperature | 3500k/4000k/5000k |
| Cri | 84 |
| Dimmable | 0-10v |
| Efficacy | 111 lm/w |
| Finish | Polyester powder coat |
| Finish colour | White |
| Housing | Aluminum frame |
| Initial lumens | 4292 |
| Ip rating | Ip20 |
| Life | >54,000 hrs |
| Operating temperature | -20c to 40c |
| Mounting type | Recessed mount |
| Power factor | 0.93 |
| Description | 2' x 2' | 20w/30w/40w | 3cct | 120-347v | 2656-4678 lm |
| Product number | 1164 |
| Unit gross weight | 4.2 lbs |
| Upc | 845599040866 |
| Voltage | 120-347v |
| Watts | 20w/30w/40w |
