For larger orders, 7502 item(s) available with a 1-2 week(s) lead time.

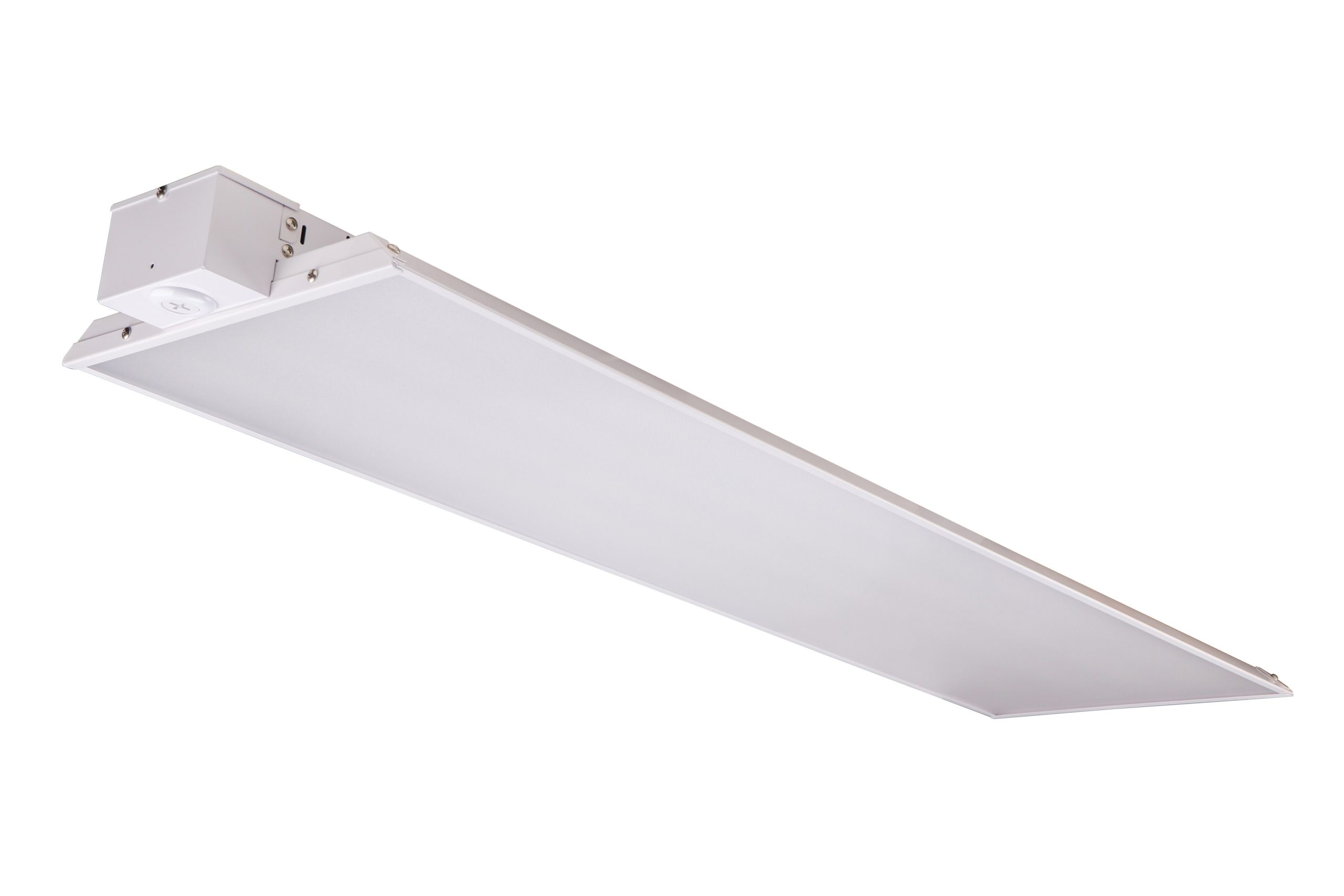

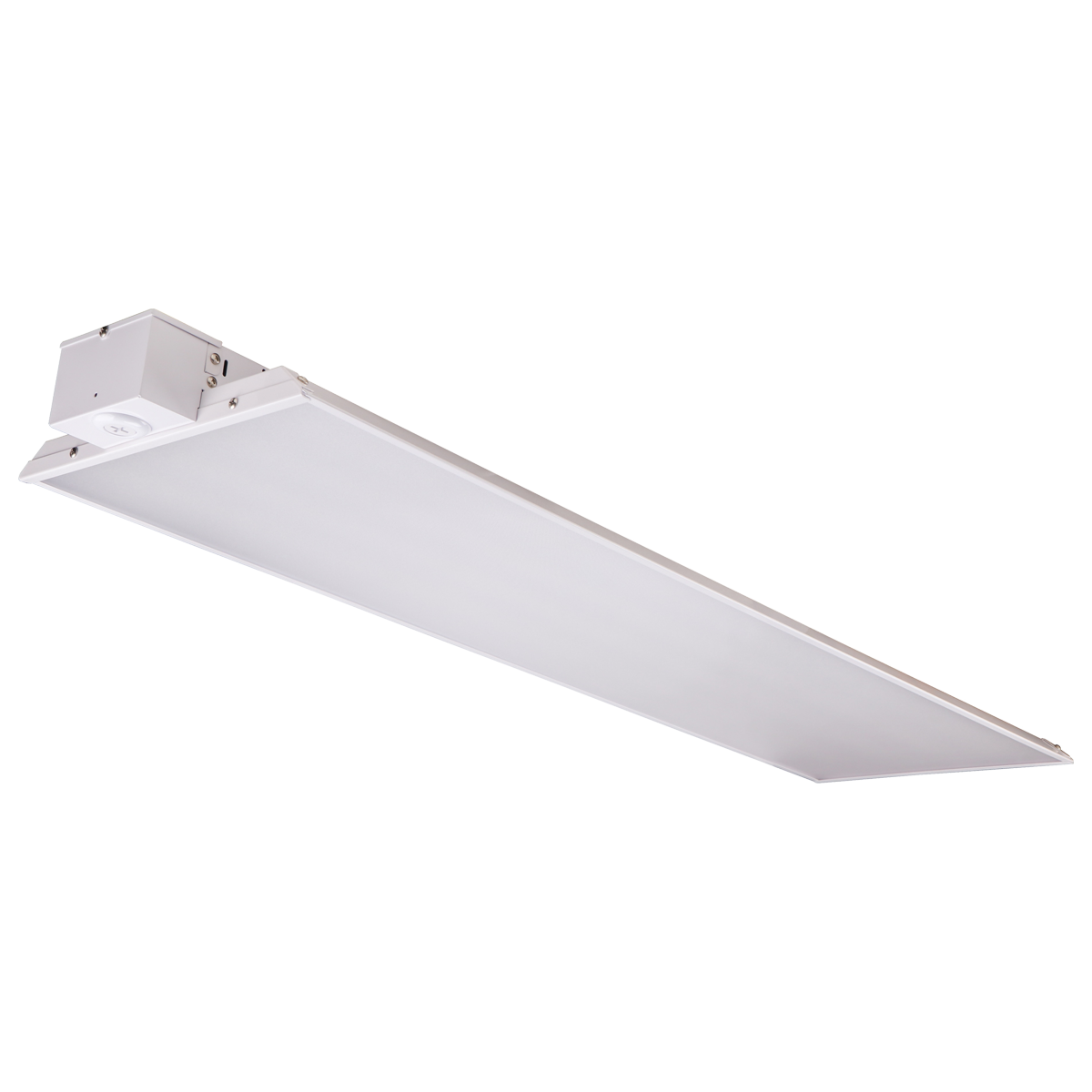

This 4-foot LED Linear High Bay (Selectable Wattage | Selectable CCT: 3500K, 4000K, or 5000K) is no longer available.
You can still purchase the updated version from us—it maintains the same 4-foot form factor and high-performance design while giving you full control over both wattage and colour temperature to suit your space.
Ideal for warehouses, manufacturing facilities, gymnasiums, and large commercial areas, the new model delivers bright, even illumination with exceptional energy efficiency and long-term reliability. Its durable construction and mercury-free design make it a safe, sustainable choice.
Note: Over time, LED fixtures may experience slight shifts in brightness or colour. When placed next to older units—even if they were originally identical—you may notice small differences in tone or output. This is normal behaviour for LED lighting.
| Kelvin | Selectable 4000/5000 |
|---|---|
| Volts | 277-480VAC |
| Watts | Selectable 180, 200, 220, or 240W |
| Lumens | 36000/33000/30000/27000 |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -40 to 50C (-40 to 122F) |
| Manufacturer Description | LHS1 Linear High Bay 240/220/200/180W 40/50K 277-480V 0-10V DIM |
| Manufacturer Name | EIKO |
| Manufacturer Code | 15136 |
| Dimmable | 0-10V |
| IP Rating | IP20 |
| Cct | 4000/5000 |
|---|---|
| Cri | 80+ |
| Dimming | 0-10 |
| Dlc version | Dlc premium |
| Efficacy (lm/w) | 150 |
| Description | Lhs1 linear high bay 240/220/200/180w 40/50k 277-480v 0-10v dim |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 36000/33000/30000/27000 |
| Operating temp range (°f/°c) | -40f to 122f (-40c to 50c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 6 lamp t5 ho or up to 600w hid |
| Voltage | 277-480vac |
| Wattage | 240/220/200/180 |
| Item id | Lhs1-ps240-8fcct-vdim |
| Item type | Fixtures |
| Order code | 15136 |
By purchasing this product, you acknowledge that UV lamps can be harmful if misused. Please follow all safety instructions.
This UV and/or Germicidal lamp emits ultraviolet radiation and is intended for controlled environments only. UV radiation can be hazardous to health if not handled properly.
By purchasing and using this product, the customer agrees and acknowledges full responsibility for:
While this product is manufactured to high standards, no guarantees are made regarding its effectiveness for any particular scientific method, simulated environment, water purification process, research outcome, industrial application, manufacturing process, or experimental result. Environmental factors, usage conditions, and application requirements vary widely, and it is the sole responsibility of the customer to determine suitability.
Any lab data, technical specifications, or performance information provided is for reference only and does not constitute a warranty or performance guarantee.
The seller disclaims all liability for injury or death, including humans, animals and plants, property damage, invalid results, performance failures, or regulatory noncompliance resulting from misuse, misapplication, inadequate testing, defective lamps, improperly manufactured or mislabelled lamps or failure to follow appropriate safety protocols.
Use at your own risk.
