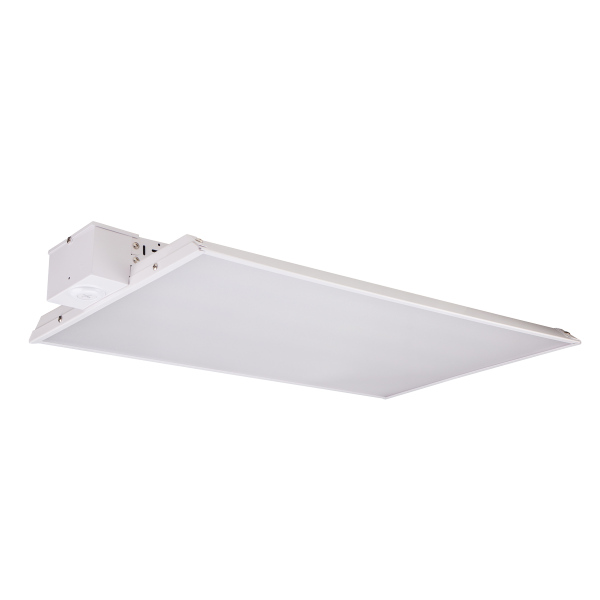

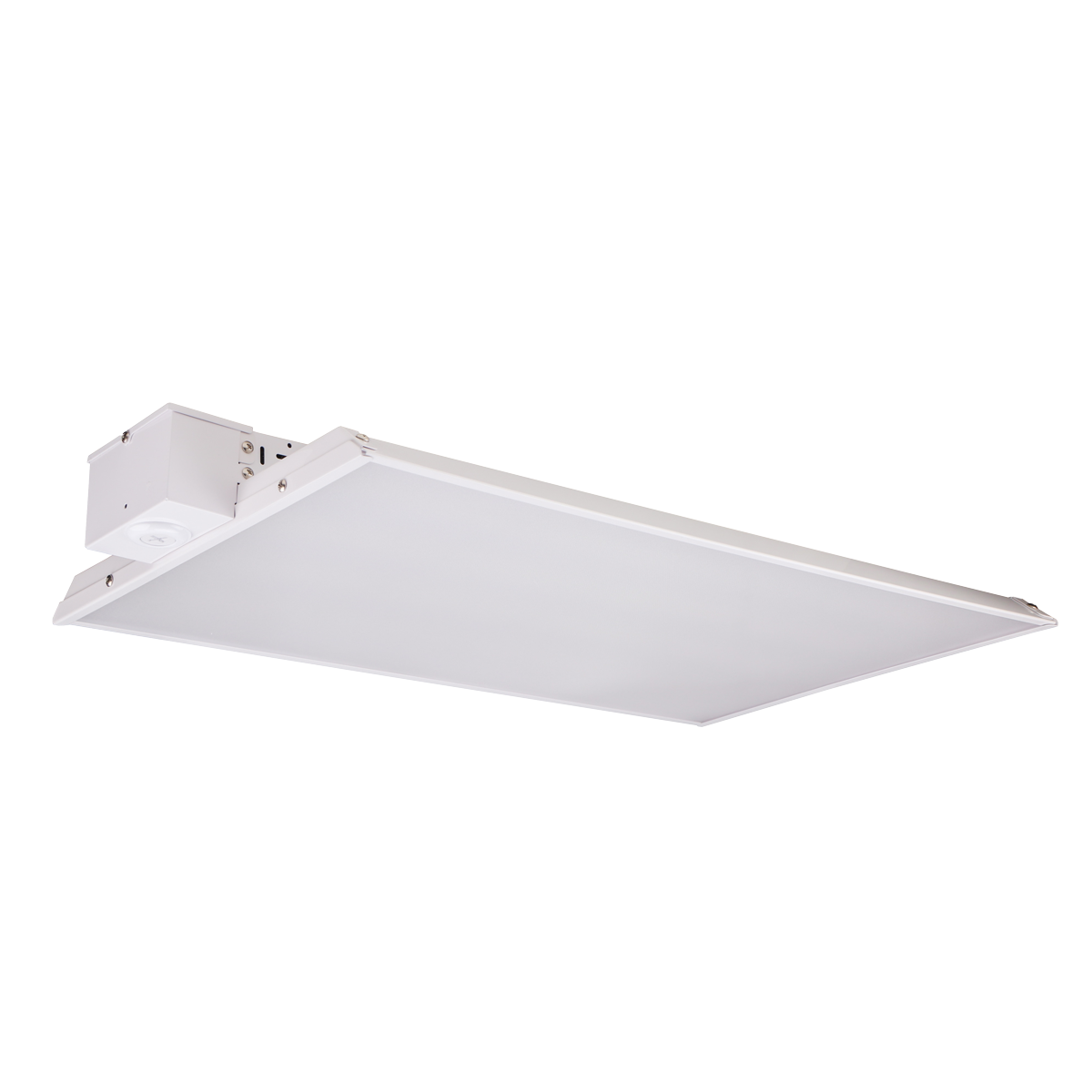

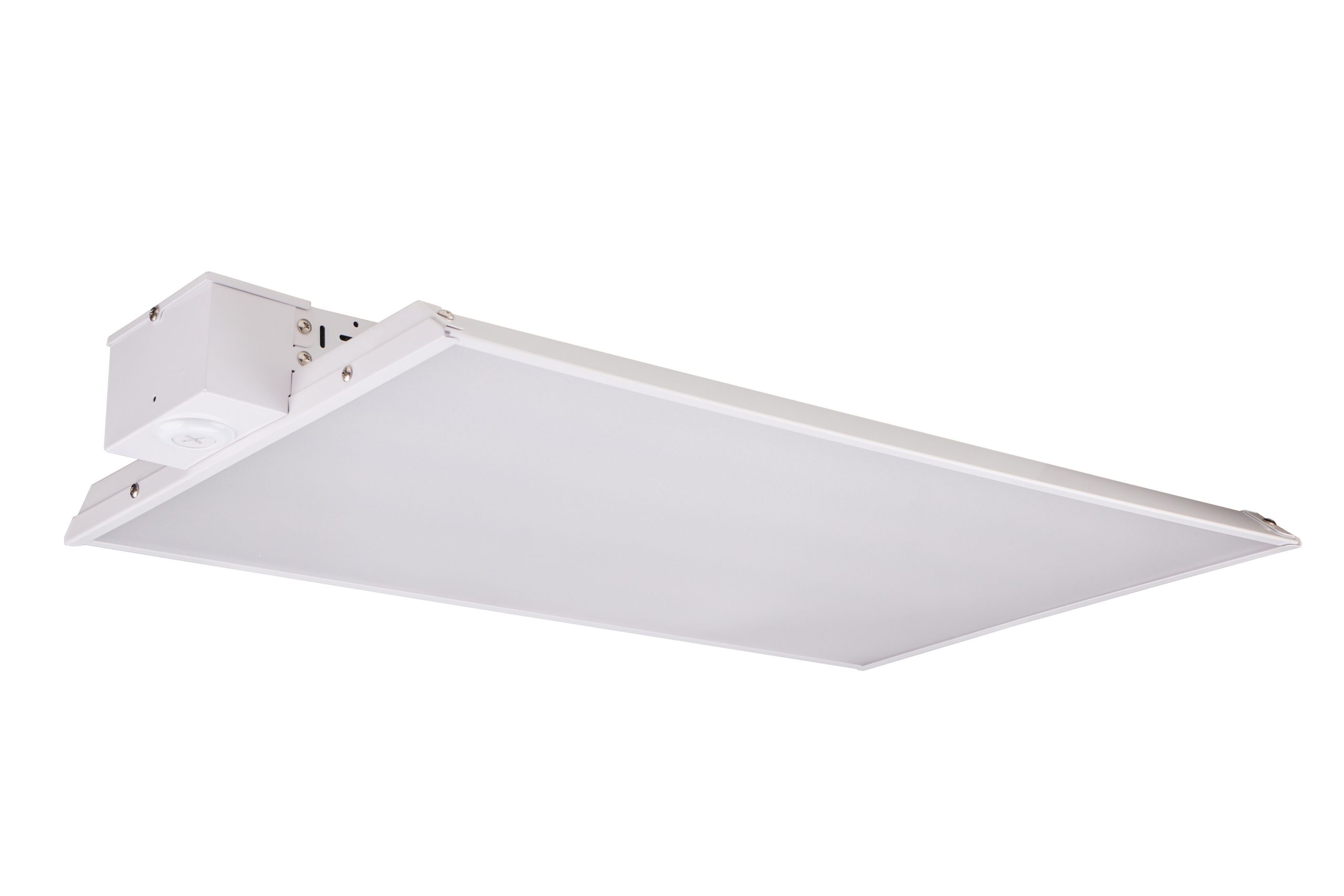

EIKO 15135 - LHS1-PS160-8FCCT-VDIM (New Version - Read Description)
Manufacturer Code: 15135
Manufacturer Code: 15135
For larger orders, 7330 item(s) available with a 1-2 week(s) lead time.
This 2-foot LED Linear High Bay (Selectable Wattage | Selectable CCT: 3500K, 4000K, or 5000K) is no longer available.
You can still purchase the updated version from us—it keeps the same 2-foot form factor while allowing you to customise both light output and colour temperature for your exact application.
Perfect for warehouses, production areas, gymnasiums, and commercial spaces, the new model delivers bright, uniform illumination with outstanding energy efficiency. Its rugged housing, mercury-free design, and long operating life make it a reliable choice for demanding environments.
Note: As LED fixtures age, slight variations in brightness or colour may occur. When installed next to older units—even if they were originally identical—you may notice small differences in light tone or output. This is normal behaviour for LED lighting.
| Kelvin | Selectable 4000/5000 |
|---|---|
| Volts | 277-480VAC |
| Watts | Selectable 90, 110, 130, or 160 |
| Lumens | Selectable 24000, 19500, 16500, or 13500 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -40 to 50C (-40 to 122F) |
| Manufacturer Description | LHS1 Linear High Bay 160/130/110/90W 40/50K 277-480V 0-10V DIM |
| Manufacturer Name | EIKO |
| Manufacturer Code | 15135 |
| Dimmable | 0-10V |
| IP Rating | IP20 |
| Cct | 4000/5000 |
|---|---|
| Cri | 80+ |
| Dimming | 0-10 |
| Dlc version | Dlc premium |
| Efficacy (lm/w) | 150 |
| Description | Lhs1 linear high bay 160/130/110/90w 40/50k 277-480v 0-10v dim |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 24000/19500/16500/13500 |
| Operating temp range (°f/°c) | -40f to 122f (-40c to 50c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 6 lamp 32w t8 or 4 lamp t5 ho or up to 400w hid |
| Voltage | 277-480vac |
| Wattage | 160/130/110/90 |
| Item id | Lhs1-ps160-8fcct-vdim |
| Item type | Fixtures |
| Order code | 15135 |
