Manufacturer Code: 12080
View Product Attributes
Hover to zoom, click top-left icon to view
For larger orders, 4 item(s) available with a 1-2 week(s) lead time.

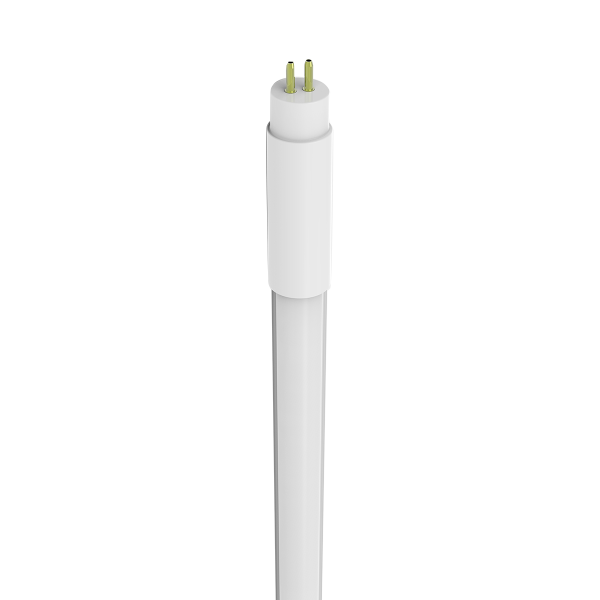

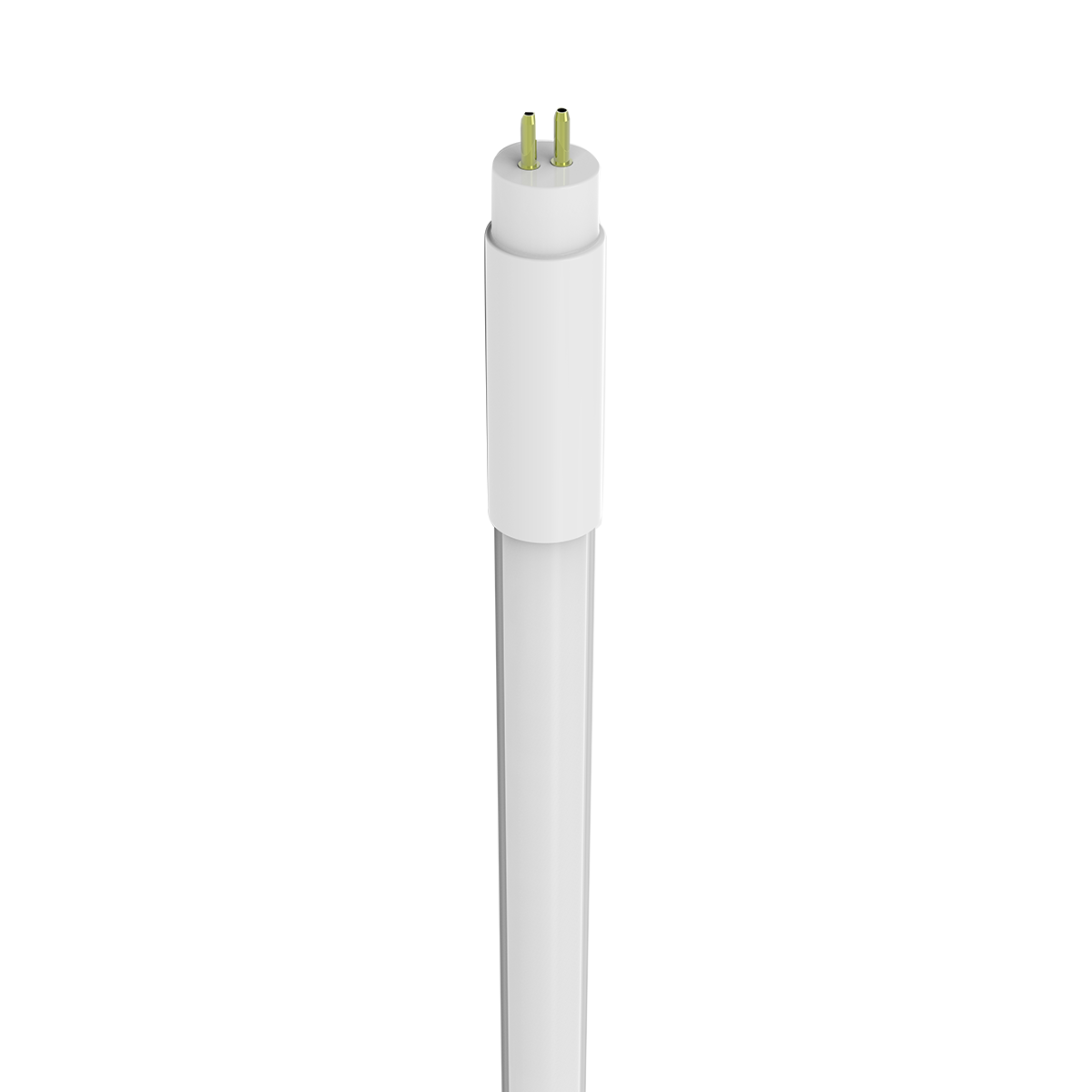

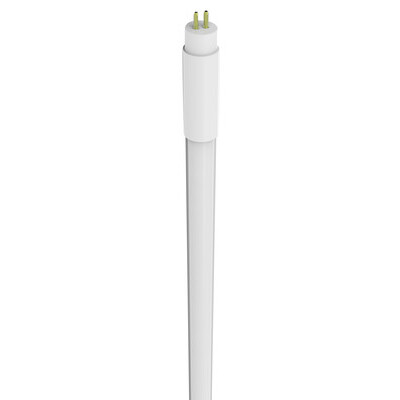

This T5 LED replacement lamp upgrades the lighting by replacing a 3500 Kelvin, 34-inch (nominally called 36 inch or 3 foot sometimes) long T5 HE fluorescent tube. The lamp is designed as a Ballast Bypass or Type B LED, with installation requiring minor electrical work—bypassing the ballast and running line voltage directly to the sockets. This process eliminates the ballast, reducing future maintenance and saving time and hassle.
Energy consumption is reduced by over 50%, and the LED lamp lasts twice as long as the fluorescent tube it replaces, with a lifespan of 50,000 hours. In most applications, a 1-for-1 replacement provides adequate light while maximising energy efficiency. With a 5-year manufacturer’s warranty and no mercury, this lamp offers long-lasting performance and peace of mind.
| Manufacturer Code | 12080 |
|---|---|
| Manufacturer Name | EIKO |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Dimmable | No |
| Certification ETL | No |
| Kelvin | 3500 |
| Lumens | 1620 |
| Volts | 120-277VAC |
| Watts | 12 |
| Temperature Range | -20 to 40C (-4 to 104F) |
| Manufacturer Description | Glass Ballast Bypass T5 3FT 12W-1620LM 3500K 80+CRI 120-277VAC |
| Maximum Overall Length (Inch) | 34 / 863.6 |
| Bulb Base | G5 Minature Bi-Pin |
| Shape | T5 |
| Cct | 3500 |
|---|---|
| Cri | 80+ |
| Dimming | No |
| Efficacy (lm/w) | 135 lm/w |
| Etl | No |
| Description | Glass ballast bypass t5 3ft 12w-1620lm 3500k 80+cri 120-277vac |
| Base type | G5 |
| Brand | Eiko |
| Bulb shape | T5 |
| Lumens (lm) | 1620 |
| Max overall length (in/mm) | 34 / 863.6 |
| Operating temp range (°f/°c) | -4f to 104f (-20c to 40c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 21w fluorescent |
| Voltage | 120-277vac |
| Wattage | 12 |
| Item id | Led12wt5he/34/835-g9d |
| Item type | Lamps |
| Order code | 12080 |
