EIKO 13173 - BP1-24PS30P-40-U

Manufacturer Code: 13173

View Product Attributes

Not the right item? 💡 Contact Us

BP1-24PS30P-40-U EIKO
BP1-24PS30P-40-U EIKO
BP1-24PS30P-40-U EIKO

Hover to zoom, click top-left icon to view

Buy Now
Kelvin

4000
Volts

120-277VAC
Watts

Selectable 20, 25, or 30W
Lumens

Selectable 3750, 3125, or 2500 lumens
Colour Rendering Index (CRI)

80+
Average Life in Hours

50000
Temperature Range

-20 to 45C (-4 to 113F)
Manufacturer Description

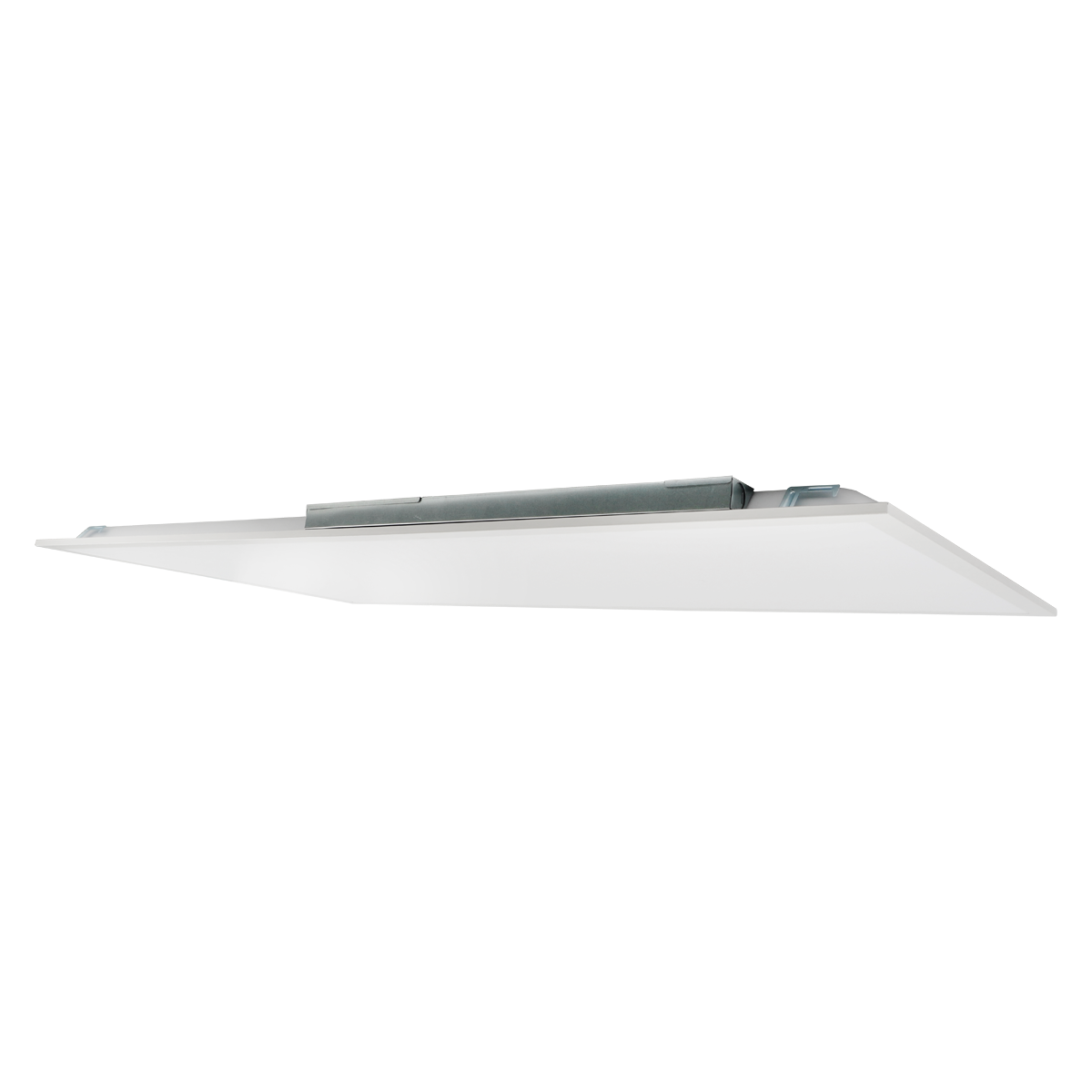

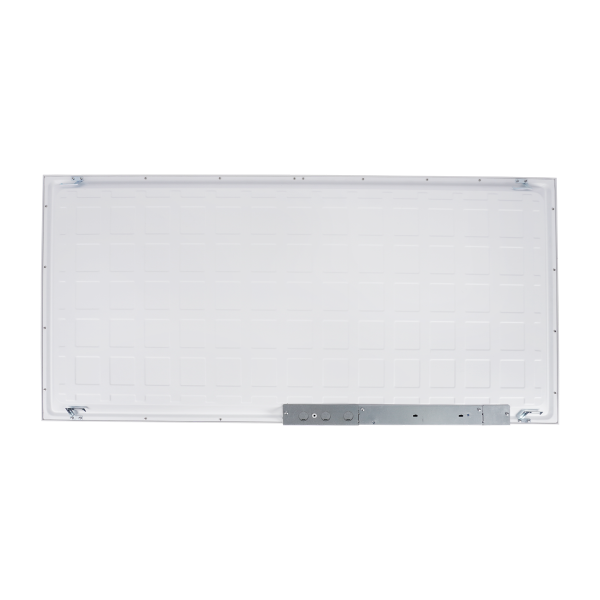

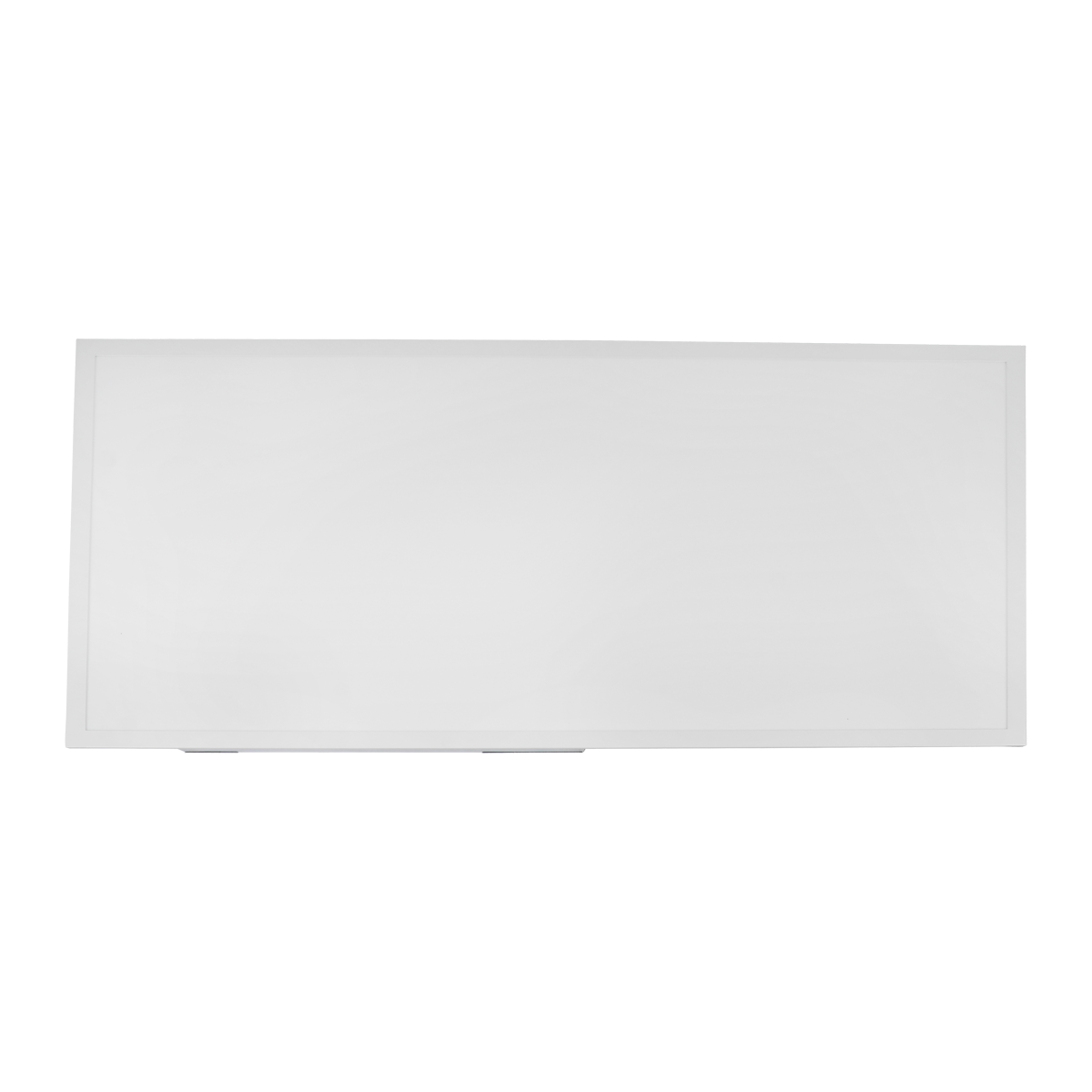

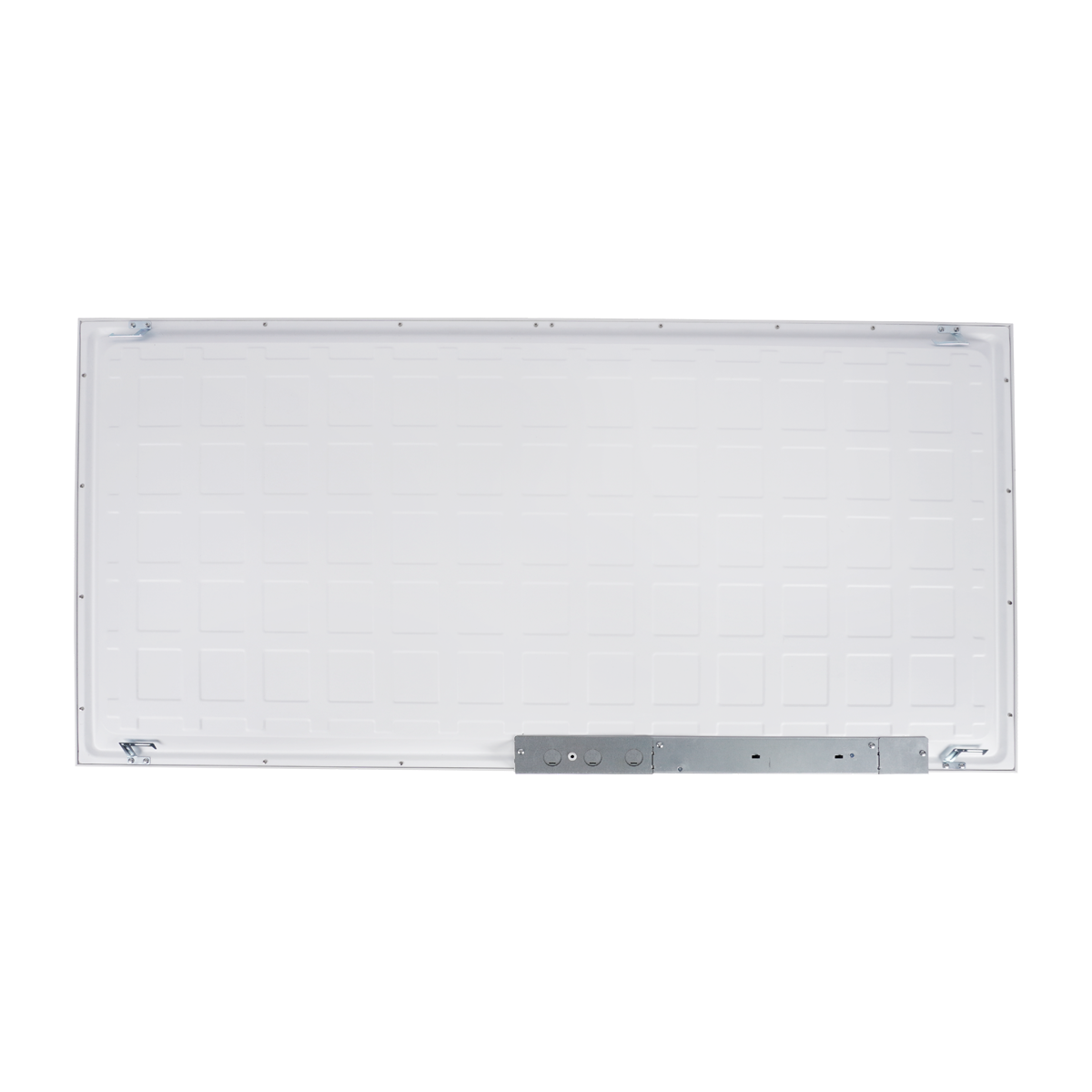

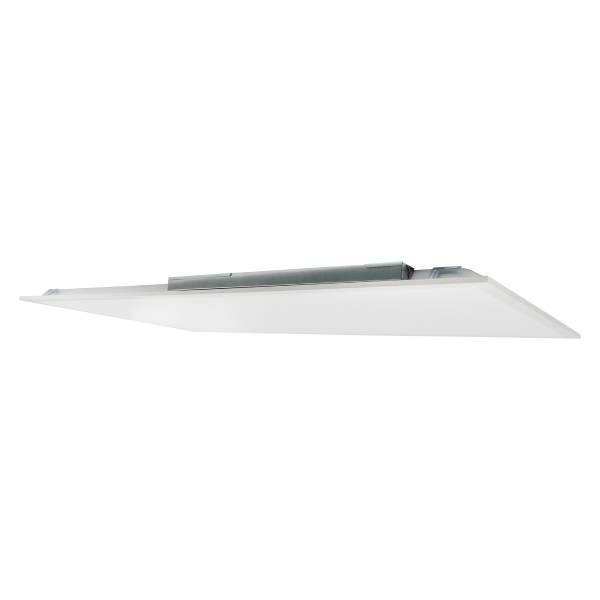

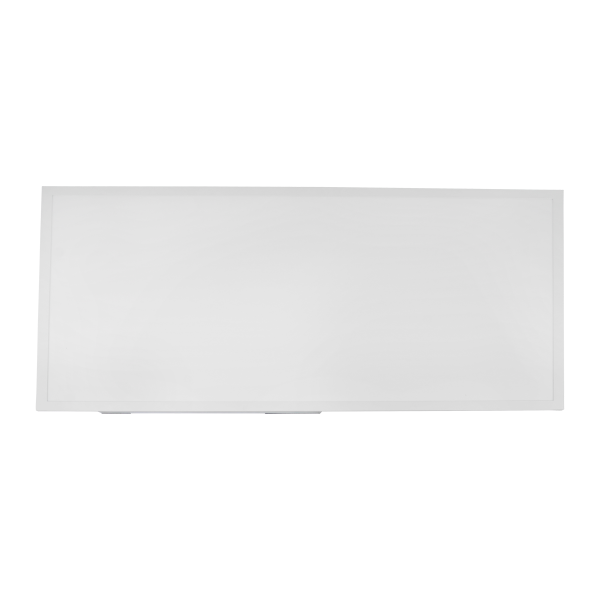

BP1 Backlit Panel, 2×4, PowerSet 30/25/20W, 4000K, 120-277V, 0-10V Dimming
Manufacturer Name

EIKO
Manufacturer Code

13173
Dimmable

0-10V
IP Rating

IP20
Cct

4000
Cri

80+
Dimming

0-10/pwm/resistance
Dlc version

Dlc premium
Efficacy (lm/w)

125 lm/w
Description

Bp1 backlit panel, 2x4, powerset 30/25/20w, 4000k, 120-277v, 0-10v dimming
Brand

Eiko
Ip rating

Ip20
Lumens (lm)

3,750/3,125/2,500 lm
Operating temp range (°f/°c)

-4f to 113f (-20c to 45c)
Rated life

50,000
Replacement for/equivalent

4 x 32w 4ft t8
Voltage

120-277vac
Wattage

30/25/20w
Item id

Bp1-24ps30p-40-u
Item type

Fixtures
Order code

13173

Stock Availability

We may be able to find this product. Please contact us Monday to Friday, 8 AM to 5 PM, at (416) 493-2977 or click the button below.

Check Availability

$131.97

Description

Flat Panel 2X4 LED 40K Back Lit 120-277V
