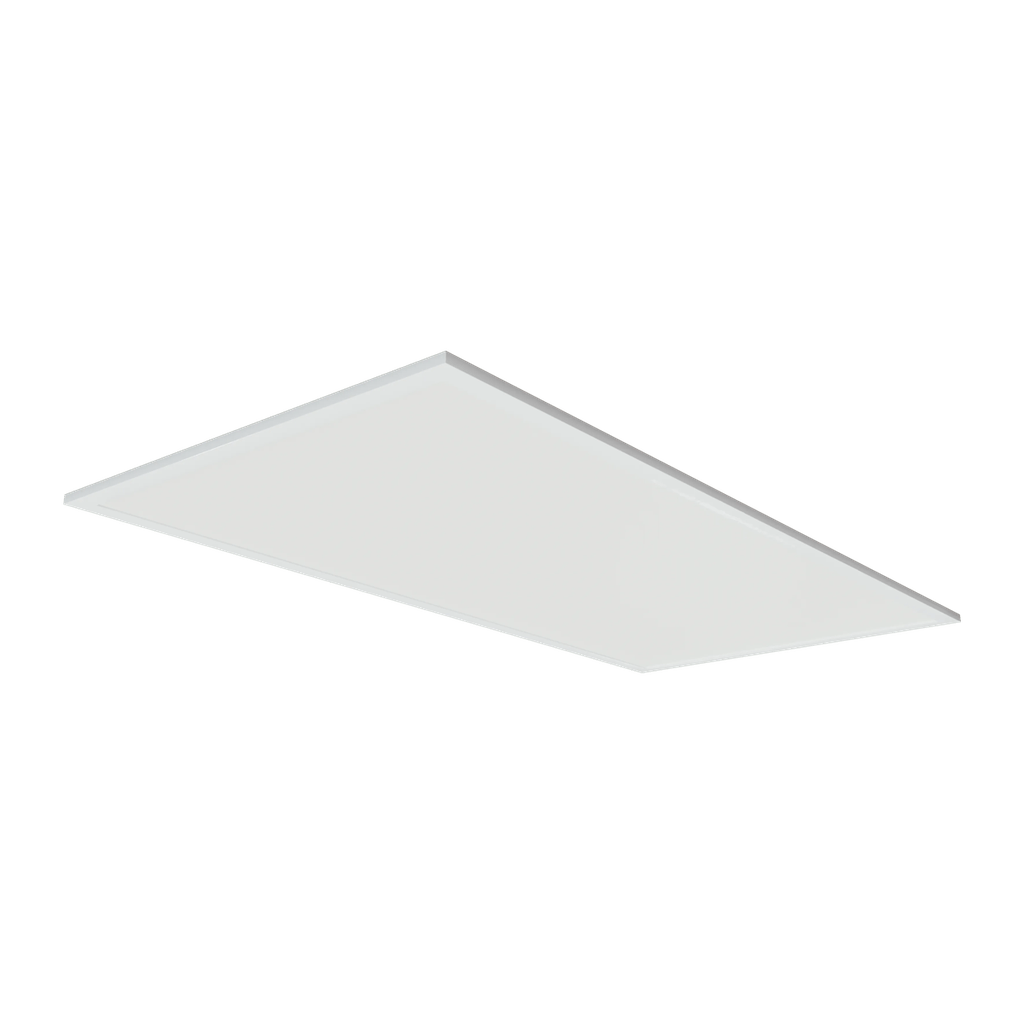

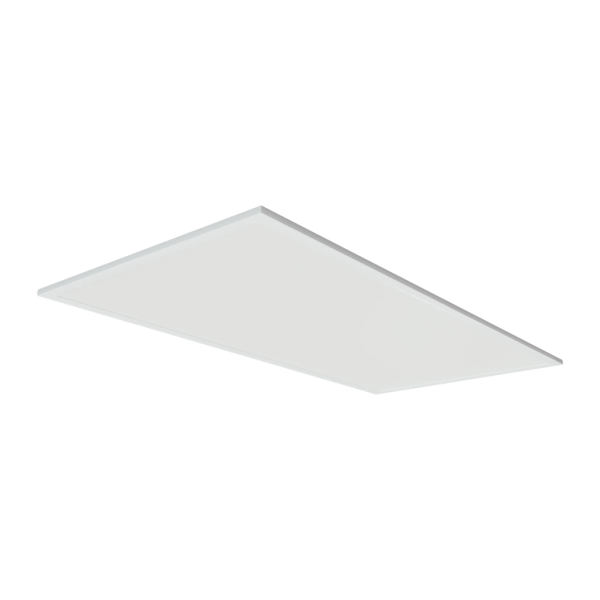

RENO LIGHTING R35106 - 24BLPL-UNV/347-MWMCCT-HL RENO-HL
Manufacturer Code: R35106
Not the right item? 💡 Contact Us
Stock Availability
Toronto Stock: 2
2 item(s) available for quick shipping from our warehouse.
Canada Wide Stock: 295
For larger orders, 295 item(s) available with a 1-2 week(s) lead time.
30/40/50/60W 0-10 VDC 120-347V INITIAL LUMENS 130LM/W 35/40/50K
Product Accessories
RENO R39213
RENO-RFK24

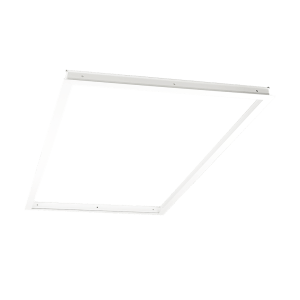

RECESSED PANEL TRIM KIT-Recessed Trim Kit for 2 x 4 Flat Panel/ Center Basket Troffer/ Architectural Troffer Fixture installation use
RENO R83001
RENO-EM-H15
EMERGENCY LED DRIVER - 15W ,100-347Vac, 50/60Hz ,0.1A max ,12W max 170V DC , 5c ~50c
Attributes
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Shape | 2×4 |
| Volts | 120-347 |

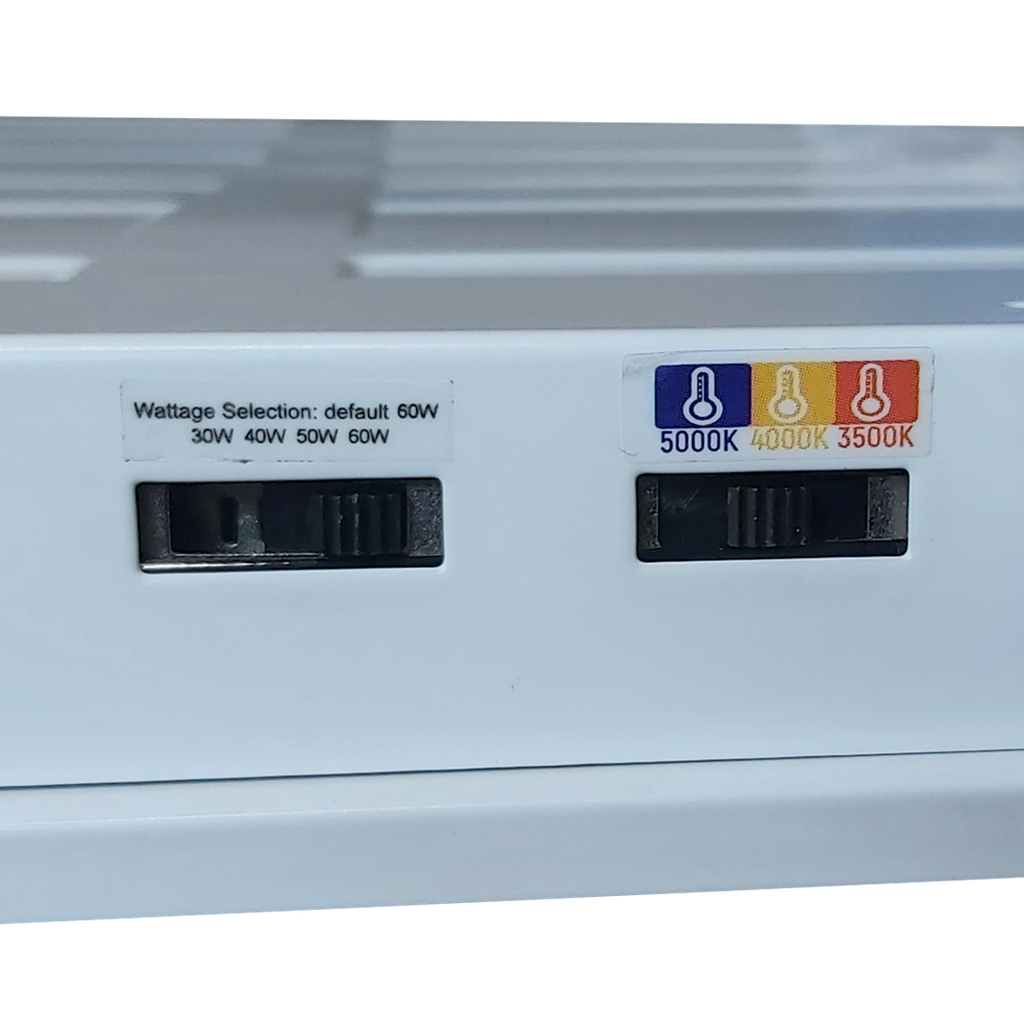

| Watts | Selectable 30, 40, 50 or 60W |
| Beam Spread in Degrees | 120 |
| Lumens | 133 lumens per watt |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 + |
| Temperature Range | -20 to 50C (-4 to 122F) |
| Manufacturer Description | LED PANEL 2X4 Back-Lit Panel | 30/40/50/60W Selectable Wattage | 3500/4000/5000K Selectable CCT | Up to 133 lm/W | 120-347V | |
| Body Colour | White |
| Manufacturer Name | RENO |
| Manufacturer Code | R35106 |
| Dimmable | Yes |
| Case Dimensions Inches | 49" x 24" x 3" – 10lbs |
| Case Quantity | 2 |
Manufacturer Attributes
| Products | Eco/premium flat panels |
|---|---|
| Color temperature (k) | 3500/4000/5000k(multi cct) |
| Cri | >80 |
| Description | 2x4 prime back-lit panel | selectable wattage 30/40/50/60w | selectable cct 3500/4000/5000k | up to 133 lm/w | 120-347v | |
| Dimmable | 0-10v |
| Dlc type | Dlc premium |
| Efficacy | Up to 133lm/w |
| Finish | White |
| Lifespan (hours) | 70,000hrs |
| Lumens | 133lm/w |
| Operating temperature | -4f to +122f (-20c to +50c) |
| Power (w) | 30/40/50/60w |
| Voltage (v) | 120-347v |
| Mol | 2x4 |
| Box qty | 2 |
| Shipping dimensions | 49" x 24" x 3" - 10lbs |
| Order no # | R35106 |
| Beam angle (degree) | 125 |
| Dlc code | S-tzq2qx |
| Dlc premium: direct linear ambient luminaires | S-vejgti |
| Dlc premium: low-bay luminaires | S-tzq2qx |
